Slim Section Ball Bearings detail

Slim Section Ball Bearings

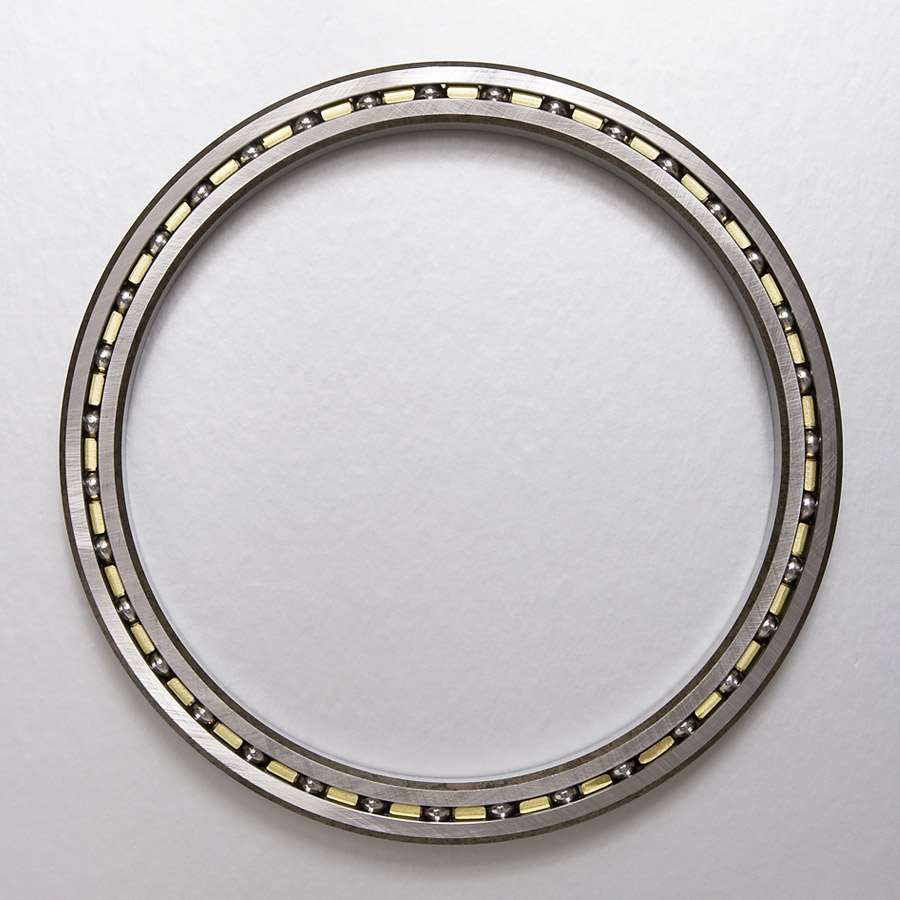

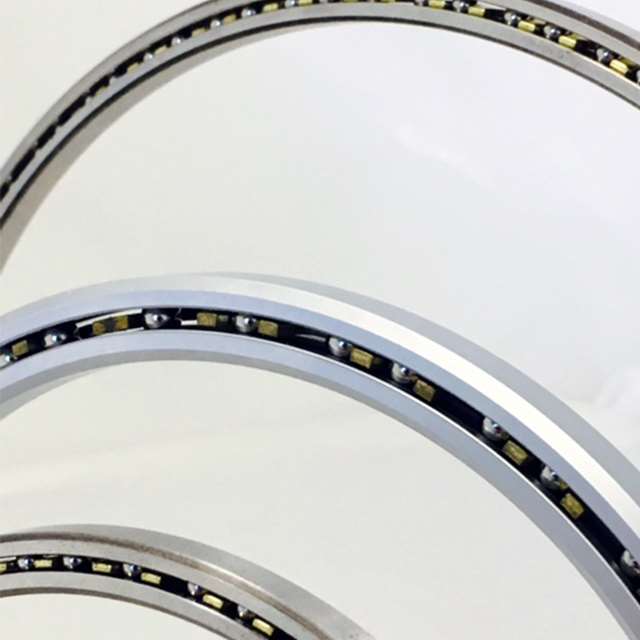

Radial Open C-Type

The C-Type Radial Ball Bearing is a single row deep groove ball bearing. This bearing can withstand high radial loads for demanding applications. The C-Type can also accept slight moderate loads, as well as axial (thrust), reversing, and moment loads.

LOAD TYPE
Radial	Axial (Thrust)	Moment	Reversing	Combined
Excellent	Good	Good-Light to Moderate	Good-Light to Moderate	Good

Typically the C-Type Radial Ball Bearing is provided with a brass cage separator and an ABEC 1 rating class. Options abound with variations available in:

Material type for rings and rolling elements
Material thickness
Bore size
Precision class
Diametral clearance (Internal Fit)

Request a Quote

Applications

Antenna mounts
Bottling equipment
Blow out protectors
Camera mounts
Converting equipment
Food processing equipment
Gear boxes

Indexing tables
Instrument mounts
Labeling machines
Machine tools/ Lathe accessories
Missile launchers
Oil well equipment

View All Applications

Specifications

Part Number

Bore

Outside Diameter

Type

1.0000

1.3750

Radial Contact

Bearing information

Learn more about RAA10CL0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCAA10

Kaydon Equivalent: KAA10CL0

NSK Equivalent: NBC2504

RBC Equivalent: KAA10CL0*RBC

Silverthin Equivalent: SAA10CL0

NSN Equivalent: 3110-01-150-9804

NSN Alternative: 3110-00097-4457

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RAA10CL0 Specifications
Product Type	Radial Contact
Part Number	RAA10CL0
Bore Diameter [b]	1.0000
Outside Diameter [D]	1.3750
Width [W]	0.1875
Land Diameter Inner Ring [Li]	1.141
Land Diameter Outer Ring [Lo]	1.234
Housing Fillet [f1]	0.015
Ball Diameter	3/32
Weight (lbs.)	0.03
Radial Static Load (lbs.)	290
Radial Dynamic Load (lbs.)	188
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	21,000
Material	52100 Bearing Steel

1.5000

1.8750

Radial Contact

Bearing information

Learn more about RAA15CL0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCAA15

Kaydon Equivalent: KAA15CL0

NSK Equivalent: NBC3804

RBC Equivalent: KAA15CL0*RBC

Silverthin Equivalent: SAA15CL0

NSN Equivalent: 3110-00-172-4027

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RAA15CL0 Specifications
Product Type	Radial Contact
Part Number	RAA15CL0
Bore Diameter [b]	1.5000
Outside Diameter [D]	1.8750
Width [W]	0.1875
Land Diameter Inner Ring [Li]	1.641
Land Diameter Outer Ring [Lo]	1.734
Housing Fillet [f1]	0.015
Ball Diameter	3/32
Weight (lbs.)	0.04
Radial Static Load (lbs.)	400
Radial Dynamic Load (lbs.)	225
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	14,000
Material	52100 Bearing Steel

1.7500

2.1250

Radial Contact

Bearing information

Learn more about RAA17CL0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA17

Kaydon Equivalent: KAA17CL0

RBC Equivalent: KAA17CL0*RBC

Silverthin Equivalent: SAA17CL0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RAA17CL0 Specifications
Product Type	Radial Contact
Part Number	RAA17CL0
Bore Diameter [b]	1.7500
Outside Diameter [D]	2.1250
Width [W]	0.1875
Land Diameter Inner Ring [Li]	1.891
Land Diameter Outer Ring [Lo]	1.984
Housing Fillet [f1]	0.015
Ball Diameter	3/32
Weight (lbs.)	0.05
Radial Static Load (lbs.)	460
Radial Dynamic Load (lbs.)	242
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	12,000
Material	52100 Bearing Steel

2.0000

2.5000

Radial Contact

Bearing information

Learn more about RA020CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA020

Kaydon Equivalent: KA020CP0

NSK Equivalent: NBC5006

RBC Equivalent: KA020CP0*RBC

Silverthin Equivalent: SA020CP0

NSN Equivalent: 3110-01-048-8785

NSN Alternative: 3110-01-297-2809 , 3110-01-137-7113 , 3110-01-225-9688

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA020CP0 Specifications
Product Type	Radial Contact
Part Number	RA020CP0
Bore Diameter [b]	2.0000
Outside Diameter [D]	2.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	2.188
Land Diameter Outer Ring [Lo]	2.313
Housing Fillet [f1]	0.250
Ball Diameter	1/8
Weight (lbs.)	0.1
Radial Static Load (lbs.)	680
Radial Dynamic Load (lbs.)	393
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Speed (RPM) Axial	10,500
Material	52100 Bearing Steel

2.0000

2.6250

Radial Contact

Bearing information

Learn more about RB020CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB020

Kaydon Equivalent: KB020CP0

NSK Equivalent: NBC5007

RBC Equivalent: KB020CP0*RBC

Silverthin Equivalent: SB020CP0

NSN Equivalent: 3110-00-343-4895

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB020CP0 Specifications
Product Type	Radial Contact
Part Number	RB020CP0
Bore Diameter [b]	2.0000
Outside Diameter [D]	2.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	2.234
Land Diameter Outer Ring [Lo]	2.391
Housing Fillet [f1]	0.400
Ball Diameter	5/32
Weight (lbs.)	0.16
Radial Static Load (lbs.)	930
Radial Dynamic Load (lbs.)	577
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	10,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

2.5000

3.0000

Radial Contact

Bearing information

Learn more about RA025CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA025

Kaydon Equivalent: KA025CP0

NSK Equivalent: NBC6306

RBC Equivalent: KA025CP0*RBC

Silverthin Equivalent: SA025CP0

NSN Equivalent: 3110-01-159-2819

NSN Alternative: 3110-01-183-2837 , 3110-01-225-9689 , 3110-01-162-0388

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA025CP0 Specifications
Product Type	Radial Contact
Part Number	RA025CP0
Bore Diameter [b]	2.5000
Outside Diameter [D]	3.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	2.688
Land Diameter Outer Ring [Lo]	2.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.13
Radial Static Load (lbs.)	830
Radial Dynamic Load (lbs.)	442
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	8,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

2.5000

3.1250

Radial Contact

Bearing information

Learn more about RB025CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB025

Kaydon Equivalent: KB025CP0

NSK Equivalent: NBC6307

RBC Equivalent: KB025CP0*RBC

Silverthin Equivalent: SB025CP0

NSN Equivalent: 3110-00-009-5739

NSN Alternative: 3110-01-564-4301

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB025CP0 Specifications
Product Type	Radial Contact
Part Number	RB025CP0
Bore Diameter [b]	2.5000
Outside Diameter [D]	3.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	2.734
Land Diameter Outer Ring [Lo]	2.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.19
Radial Static Load (lbs.)	1,140
Radial Dynamic Load (lbs.)	644
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	8,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

3.0000

3.5000

Radial Contact

Bearing information

Learn more about RA030CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA030

Kaydon Equivalent: KA030CP0

NSK Equivalent: NBC7606

RBC Equivalent: KA030CP0*RBC

Silverthin Equivalent: SA030CP0

NSN Alternative: 3110-01-139-6511

NSN Alternative: 3110-01-104-3955

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA030CP0 Specifications
Product Type	Radial Contact
Part Number	RA030CP0
Bore Diameter [b]	3.0000
Outside Diameter [D]	3.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	3.188
Land Diameter Outer Ring [Lo]	3.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.15
Radial Static Load (lbs.)	990
Radial Dynamic Load (lbs.)	487
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	6,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

3.0000

3.6250

Radial Contact

Bearing information

Learn more about RB030CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB030

Kaydon Equivalent: KB030CP0

NSK Equivalent: NBC7607

RBC Equivalent: KB030CP0*RBC

Silverthin Equivalent: SB030CP0

NSN Equivalent: 3110-01-161-8746

NSN Alternative: 3110-01-163-9547

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB030CP0 Specifications
Product Type	Radial Contact
Part Number	RB030CP0
Bore Diameter [b]	3.0000
Outside Diameter [D]	3.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	3.234
Land Diameter Outer Ring [Lo]	3.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.24
Radial Static Load (lbs.)	1,340
Radial Dynamic Load (lbs.)	707
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	7,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

3.5000

4.0000

Radial Contact

Bearing information

Learn more about RA035CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA035

Kaydon Equivalent: KA035CP0

NSK Equivalent: NBC8806

RBC Equivalent: KA035CP0*RBC

Silverthin Equivalent: SA035CP0

NSN Equivalent: 3110-00-179-7270

NSN Alternative: 3110-01-117-4260

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA035CP0 Specifications
Product Type	Radial Contact
Part Number	RA035CP0
Bore Diameter [b]	3.5000
Outside Diameter [D]	4.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	3.688
Land Diameter Outer Ring [Lo]	3.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.18
Radial Static Load (lbs.)	1,140
Radial Dynamic Load (lbs.)	530
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,142
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

3.5000

4.1250

Radial Contact

Bearing information

Learn more about RB035CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB035

Kaydon Equivalent: KB035CP0

NSK Equivalent: NBC8807

RBC Equivalent: KB035CP0*RBC

Silverthin Equivalent: SB035CP0

NSN Alternative: 3110-01-117-9472 , 3110-01-564-4318

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB035CP0 Specifications
Product Type	Radial Contact
Part Number	RB035CP0
Bore Diameter [b]	3.5000
Outside Diameter [D]	4.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	3.734
Land Diameter Outer Ring [Lo]	3.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.27
Radial Static Load (lbs.)	1,540
Radial Dynamic Load (lbs.)	767
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,145
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

4.5000

Radial Contact

Bearing information

Learn more about RA040CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA040

Kaydon Equivalent: KA040CP0

NSK Equivalent: NBC10106

RBC Equivalent: KA040CP0*RBC

Silverthin Equivalent: SA040CP0

NSN Equivalent: 3110-00-897-2949

NSN Alternative: 3110-01-326-0037 , 3110-00-522-0479 , 3110-01-095-8955 , 3110-01-107-1815

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA040CP0 Specifications
Product Type	Radial Contact
Part Number	RA040CP0
Bore Diameter [b]	4.0000
Outside Diameter [D]	4.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.188
Land Diameter Outer Ring [Lo]	4.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.2
Radial Static Load (lbs.)	1,290
Radial Dynamic Load (lbs.)	571
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

4.6250

Radial Contact

Bearing information

Learn more about RB040CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB040

Kaydon Equivalent: KB040CP0

NSK Equivalent: NBC10107

RBC Equivalent: KB040CP0*RBC

Silverthin Equivalent: SB040CP0

NSN Equivalent: 3110-00-935-5766

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB040CP0 Specifications
Product Type	Radial Contact
Part Number	RB040CP0
Bore Diameter [b]	4.0000
Outside Diameter [D]	4.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.234
Land Diameter Outer Ring [Lo]	4.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.3
Radial Static Load (lbs.)	1,750
Radial Dynamic Load (lbs.)	825
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

4.7500

Radial Contact

Bearing information

Learn more about RC040CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC040

Kaydon Equivalent: KC040CP0

NSK Equivalent: NBC10109

RBC Equivalent: KC040CP0*RBC

Silverthin Equivalent: SC040CP0

NSN Equivalent: 3110-00-020-9330

NSN Alternative: 3110-00-009-5740

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC040CP0 Specifications
Product Type	Radial Contact
Part Number	RC040CP0
Bore Diameter [b]	4.0000
Outside Diameter [D]	4.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	4.281
Land Diameter Outer Ring [Lo]	4.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.45
Radial Static Load (lbs.)	2,100
Radial Dynamic Load (lbs.)	1,073
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,275
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

5.0000

Radial Contact

Bearing information

Learn more about RD040CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD040

Kaydon Equivalent: KD040CP0

NSK Equivalent: NBC10112

RBC Equivalent: KD040CP0*RBC

Silverthin Equivalent: SD040CP0

NSN Equivalent: 3110-01-205-5125

NSN Alternative: 3110-00-267-0668 , 3110-01-258-8258

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD040CP0 Specifications
Product Type	Radial Contact
Part Number	RD040CP0
Bore Diameter [b]	4.0000
Outside Diameter [D]	5.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	4.375
Land Diameter Outer Ring [Lo]	4.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.78
Radial Static Load (lbs.)	3,080
Radial Dynamic Load (lbs.)	1,755
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

5.5000

Radial Contact

Bearing information

Learn more about RF040CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF040

Kaydon Equivalent: KF040CP0

NSK Equivalent: NBC10119

RBC Equivalent: KF040CP0*RBC

Silverthin Equivalent: SF040CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF040CP0 Specifications
Product Type	Radial Contact
Part Number	RF040CP0
Bore Diameter [b]	4.0000
Outside Diameter [D]	5.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	4.563
Land Diameter Outer Ring [Lo]	4.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	1.9
Radial Static Load (lbs.)	5,360
Radial Dynamic Load (lbs.)	3,559
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

6.0000

Radial Contact

Bearing information

Learn more about RG040CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG040

Kaydon Equivalent: KG040CP0

NSK Equivalent: NBC10215

RBC Equivalent: KG040CP0*RBC

Silverthin Equivalent: SG040CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG040CP0 Specifications
Product Type	Radial Contact
Part Number	RG040CP0
Bore Diameter [b]	4.0000
Outside Diameter [D]	6.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	4.750
Land Diameter Outer Ring [Lo]	5.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	3.6
Radial Static Load (lbs.)	8,210
Radial Dynamic Load (lbs.)	6,115
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

4.7500

Radial Contact

Bearing information

Learn more about RA042CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA042

Kaydon Equivalent: KA042CP0

NSK Equivalent: NBC10706

RBC Equivalent: KA042CP0*RBC

Silverthin Equivalent: SA042CP0

NSN Equivalent: 3110-00-058-1668

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA042CP0 Specifications
Product Type	Radial Contact
Part Number	RA042CP0
Bore Diameter [b]	4.2500
Outside Diameter [D]	4.7500
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.438
Land Diameter Outer Ring [Lo]	4.563
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.2
Radial Static Load (lbs.)	1,370
Radial Dynamic Load (lbs.)	591
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,235
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

4.8750

Radial Contact

Bearing information

Learn more about RB042CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB042

Kaydon Equivalent: KB042CP0

NSK Equivalent: NBC10707

RBC Equivalent: KB042CP0*RBC

Silverthin Equivalent: SB042CP0

NSN Equivalent: 3110-00-904-0949

NSN Alternative: 3110-00-935-5766

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB042CP0 Specifications
Product Type	Radial Contact
Part Number	RB042CPO
Bore Diameter [b]	4.2500
Outside Diameter [D]	4.8750
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.484
Land Diameter Outer Ring [Lo]	4.641
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.31
Radial Static Load (lbs.)	1,830
Radial Dynamic Load (lbs.)	846
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

5.0000

Radial Contact

Bearing information

Learn more about RC042CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC042

Kaydon Equivalent: KC042CP0

NSK Equivalent: NBC10709

RBC Equivalent: KC042CP0*RBC

Silverthin Equivalent: SC042CP0

NSN Equivalent: 3110-00-076-4408

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC042CP0 Specifications
Product Type	Radial Contact
Part Number	RC042CP0
Bore Diameter [b]	4.2500
Outside Diameter [D]	5.0000
Width [W]	0.3750
Land Diameter Inner Ring [Li]	4.531
Land Diameter Outer Ring [Lo]	4.719
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.47
Radial Static Load (lbs.)	2,220
Radial Dynamic Load (lbs.)	1,108
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

5.2500

Radial Contact

Bearing information

Learn more about RD042CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD042

Kaydon Equivalent: KD042CP0

NSK Equivalent: NBC10712

RBC Equivalent: KD042CP0*RBC

Silverthin Equivalent: SD042CP0

NSN Equivalent: 3110-00-443-1461

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD042CP0 Specifications
Product Type	Radial Contact
Part Number	RD042CPO
Bore Diameter [b]	4.2500
Outside Diameter [D]	5.2500
Width [W]	0.5000
Land Diameter Inner Ring [Li]	4.625
Land Diameter Outer Ring [Lo]	4.875
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.83
Radial Static Load (lbs.)	3,190
Radial Dynamic Load (lbs.)	1,787
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,940
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

5.7500

Radial Contact

Bearing information

Learn more about RF042CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF042

Kaydon Equivalent: KF042CP0

NSK Equivalent: NBC10719

RBC Equivalent: KF042CP0*RBC

Silverthin Equivalent: SF042CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF042CP0 Specifications
Product Type	Radial Contact
Part Number	RF042CP0
Bore Diameter [b]	4.2500
Outside Diameter [D]	5.7500
Width [W]	0.7500
Land Diameter Inner Ring [Li]	4.813
Land Diameter Outer Ring [Lo]	5.188
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.0
Radial Static Load (lbs.)	5,640
Radial Dynamic Load (lbs.)	3,655
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,900
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

6.2500

Radial Contact

Bearing information

Learn more about RG042CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG042

Kaydon Equivalent: KG042CP0

NSK Equivalent: NBC10725

RBC Equivalent: KG042CP0*RBC

Silverthin Equivalent: SG042CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG042CP0 Specifications
Product Type	Radial Contact
Part Number	RG042CP0
Bore Diameter [b]	4.2500
Outside Diameter [D]	6.2500
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.000
Land Diameter Outer Ring [Lo]	5.500
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	3.8
Radial Static Load (lbs.)	8,210
Radial Dynamic Load (lbs.)	6,061
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,900
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.0000

Radial Contact

Bearing information

Learn more about RA045CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA045

Kaydon Equivalent: KA045CP0

NSK Equivalent: NBC11406

RBC Equivalent: KA045CP0*RBC

Silverthin Equivalent: SA045CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA045CP0 Specifications
Product Type	Radial Contact
Part Number	RA045CP0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.688
Land Diameter Outer Ring [Lo]	4.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.22
Radial Static Load (lbs.)	1,440
Radial Dynamic Load (lbs.)	610
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.1250

Radial Contact

Bearing information

Learn more about RB045CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB045

Kaydon Equivalent: KB045CP0

NSK Equivalent: NBC11407

RBC Equivalent: KB045CP0*RBC

Silverthin Equivalent: SB045CP0

NSN Equivalent: 3110-00-019-6388

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB045CP0 Specifications
Product Type	Radial Contact
Part Number	RB045CP0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.734
Land Diameter Outer Ring [Lo]	4.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.33
Radial Static Load (lbs.)	1,950
Radial Dynamic Load (lbs.)	880
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.2500

Radial Contact

Bearing information

Learn more about RC045CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC045

Kaydon Equivalent: KC045CP0

NSK Equivalent: NBC11409

RBC Equivalent: KC045CP0*RBC

Silverthin Equivalent: SC045CP0

NSN Equivalent: 3110-01-220-5147

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC045CP0 Specifications
Product Type	Radial Contact
Part Number	RC045CP0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	4.781
Land Diameter Outer Ring [Lo]	4.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.48
Radial Static Load (lbs.)	2,340
Radial Dynamic Load (lbs.)	1,143
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.5000

Radial Contact

Bearing information

Learn more about RD045CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD045

Kaydon Equivalent: KD045CP0

NSK Equivalent: NBC11412

RBC Equivalent: KD045CP0*RBC

Silverthin Equivalent: SD045CP0

NSN Equivalent: 3110-00-436-1887

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD045CP0 Specifications
Product Type	Radial Contact
Part Number	RD045CP0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	4.875
Land Diameter Outer Ring [Lo]	5.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.88
Radial Static Load (lbs.)	3,420
Radial Dynamic Load (lbs.)	1,861
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,620
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

6.0000

Radial Contact

Bearing information

Learn more about RF045CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF045

Kaydon Equivalent: KF045CP0

NSK Equivalent: NBC11419

RBC Equivalent: KF045CP0*RBC

Silverthin Equivalent: SF045CP0

NSN Equivalent: 3110-01-450-7948

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF045CP0 Specifications
Product Type	Radial Contact
Part Number	RF045CP0
Bore Diameter [b]	4.5000
Outside Diameter [D]	6.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	5.063
Land Diameter Outer Ring [Lo]	5.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.10
Radial Static Load (lbs.)	5,930
Radial Dynamic Load (lbs.)	3,750
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,650
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

6.5000

Radial Contact

Bearing information

Learn more about RG045CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG045

Kaydon Equivalent: KG045CP0

NSK Equivalent: NBC11425

RBC Equivalent: KG045CP0*RBC

Silverthin Equivalent: SG045CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG045CP0 Specifications
Product Type	Radial Contact
Part Number	RG045CP0
Bore Diameter [b]	4.5000
Outside Diameter [D]	6.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.250
Land Diameter Outer Ring [Lo]	5.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	4.00
Radial Static Load (lbs.)	8,760
Radial Dynamic Load (lbs.)	6,277
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.2500

Radial Contact

Bearing information

Learn more about RA047CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA047

Kaydon Equivalent: KA047CP0

NSK Equivalent: NBC12006

RBC Equivalent: KA047CP0*RBC

Silverthin Equivalent: SA047CP0

NSN Equivalent: 3110-00-914-0698

NSN Alternative: 3110-01-049-2291 , 3120-01-051-9552

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA047CP0 Specifications
Product Type	Radial Contact
Part Number	RA047CP0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.2500
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.938
Land Diameter Outer Ring [Lo]	5.063
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	60
Radial Static Load (lbs.)	0.23
Radial Dynamic Load (lbs.)	1,520
Thrust Static Load (lbs.)	629
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,790
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.3750

Radial Contact

Bearing information

Learn more about RB047CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB047

Kaydon Equivalent: KB047CP0

NSK Equivalent: NBC12007

RBC Equivalent: KB047CP0*RBC

Silverthin Equivalent: SB047CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB047CP0 Specifications
Product Type	Radial Contact
Part Number	RB047CP0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.3750
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.984
Land Diameter Outer Ring [Lo]	5.141
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.34
Radial Static Load (lbs.)	2,030
Radial Dynamic Load (lbs.)	901
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.5000

Radial Contact

Bearing information

Learn more about RC047CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC047

Kaydon Equivalent: KC047CP0

NSK Equivalent: NBC12009

RBC Equivalent: KC047CP0*RBC

Silverthin Equivalent: SC047CP0

NSN Alternative: 3110-01-219-5453 , 3110-00-009-5741 , 3110-00-729-6313

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC047CP0 Specifications
Product Type	Radial Contact
Part Number	RC047CP0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.5000
Width [W]	0.3750
Land Diameter Inner Ring [Li]	5.031
Land Diameter Outer Ring [Lo]	5.219
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.5
Radial Static Load (lbs.)	2,460
Radial Dynamic Load (lbs.)	1,176
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,795
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.7500

Radial Contact

Bearing information

Learn more about RD047CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD047

Kaydon Equivalent: KD047CP0

NSK Equivalent: NBC12012

RBC Equivalent: KD047CP0*RBC

Silverthin Equivalent: SD047CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD047CP0 Specifications
Product Type	Radial Contact
Part Number	RD047CP0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.7500
Width [W]	0.5000
Land Diameter Inner Ring [Li]	5.125
Land Diameter Outer Ring [Lo]	5.375
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.94
Radial Static Load (lbs.)	3,530
Radial Dynamic Load (lbs.)	1,892
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

6.2500

Radial Contact

Bearing information

Learn more about RF047CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF047

Kaydon Equivalent: KF047CP0

NSK Equivalent: NBC12019

RBC Equivalent: KF047CP0*RBC

Silverthin Equivalent: SF047CP0

NSN Equivalent: 3110-01-040-4836

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF047CP0 Specifications
Product Type	Radial Contact
Part Number	RF047CP0
Bore Diameter [b]	4.7500
Outside Diameter [D]	6.2500
Width [W]	0.7500
Land Diameter Inner Ring [Li]	5.313
Land Diameter Outer Ring [Lo]	5.688
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.2
Radial Static Load (lbs.)	6,210
Radial Dynamic Load (lbs.)	3,843
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

6.7500

Radial Contact

Bearing information

Learn more about RG047CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG047

Kaydon Equivalent: KG047CP0

NSK Equivalent: NBC12025

RBC Equivalent: KG047CP0*RBC

Silverthin Equivalent: SG047CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG047CP0 Specifications
Product Type	Radial Contact
Part Number	RG047CP0
Bore Diameter [b]	4.7500
Outside Diameter [D]	6.7500
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.500
Land Diameter Outer Ring [Lo]	6.000
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	4.10
Radial Static Load (lbs.)	9,300
Radial Dynamic Load (lbs.)	6,487
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,850
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

5.5000

Radial Contact

Bearing information

Learn more about RA050CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA050

Kaydon Equivalent: KA050CP0

NSK Equivalent: NBC12706

RBC Equivalent: KA050CP0*RBC

Silverthin Equivalent: SA050CP0

NSN Equivalent: 3110-00-914-0699

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA050CP0 Specifications
Product Type	Radial Contact
Part Number	RA050CP0
Bore Diameter [b]	5.0000
Outside Diameter [D]	5.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	5.188
Land Diameter Outer Ring [Lo]	5.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.24
Radial Static Load (lbs.)	1,590
Radial Dynamic Load (lbs.)	648
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

5.6250

Radial Contact

Bearing information

Learn more about RB050CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB050

Kaydon Equivalent: KB050CP0

NSK Equivalent: NBC12707

RBC Equivalent: KB050CP0*RBC

Silverthin Equivalent: SB050CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB050CP0 Specifications
Product Type	Radial Contact
Part Number	RB050CP0
Bore Diameter [b]	5.0000
Outside Diameter [D]	5.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	5.234
Land Diameter Outer Ring [Lo]	5.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.38
Radial Static Load (lbs.)	2,150
Radial Dynamic Load (lbs.)	933
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

5.7500

Radial Contact

Bearing information

Learn more about RC050CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC050

Kaydon Equivalent: KC050CP0

NSK Equivalent: NBC12709

RBC Equivalent: KC050CP0*RBC

Silverthin Equivalent: SC050CP0

NSN Equivalent: 3110-01-176-7421

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC050CP0 Specifications
Product Type	Radial Contact
Part Number	RC050CP0
Bore Diameter [b]	5.0000
Outside Diameter [D]	5.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	5.281
Land Diameter Outer Ring [Lo]	5.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.58
Radial Static Load (lbs.)	2,590
Radial Dynamic Load (lbs.)	1,209
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,620
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

6.0000

Radial Contact

Bearing information

Learn more about RD050CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD050

Kaydon Equivalent: KD050CP0

NSK Equivalent: NBC12712

RBC Equivalent: KD050CP0*RBC

Silverthin Equivalent: SD050CP0

NSN Equivalent: 3110-00-044-1403

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD050CP0 Specifications
Product Type	Radial Contact
Part Number	RD050CP0
Bore Diameter [b]	5.0000
Outside Diameter [D]	6.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	5.375
Land Diameter Outer Ring [Lo]	5.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.00
Radial Static Load (lbs.)	3,760
Radial Dynamic Load (lbs.)	1,964
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

6.5000

Radial Contact

Bearing information

Learn more about RF050CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF050

Kaydon Equivalent: KF050CP0

NSK Equivalent: NBC12719

RBC Equivalent: KF050CP0*RBC

Silverthin Equivalent: SF050CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF050CP0 Specifications
Product Type	Radial Contact
Part Number	RF050CP0
Bore Diameter [b]	5.0000
Outside Diameter [D]	6.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	5.563
Land Diameter Outer Ring [Lo]	5.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.30
Radial Static Load (lbs.)	6,490
Radial Dynamic Load (lbs.)	3,936
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,175
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

7.0000

Radial Contact

Bearing information

Learn more about RG050CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG050

Kaydon Equivalent: KG050CP0

NSK Equivalent: NBC12725

RBC Equivalent: KG050CP0*RBC

Silverthin Equivalent: SG050CP0

NSN Equivalent: 3110-01-174-8294

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG050CP0 Specifications
Product Type	Radial Contact
Part Number	RG050CP0
Bore Diameter [b]	5.0000
Outside Diameter [D]	7.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.750
Land Diameter Outer Ring [Lo]	6.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	4.30
Radial Static Load (lbs.)	9,850
Radial Dynamic Load (lbs.)	6,691
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.0000

Radial Contact

Bearing information

Learn more about RA055CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA055

Kaydon Equivalent: KA055CP0

NSK Equivalent: NBC13906

RBC Equivalent: KA055CP0*RBC

Silverthin Equivalent: SA055CP0

NSN Equivalent: 3110-00-897-2942

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA055CP0 Specifications
Product Type	Radial Contact
Part Number	RA055CP0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	5.688
Land Diameter Outer Ring [Lo]	5.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.25
Radial Static Load (lbs.)	1,750
Radial Dynamic Load (lbs.)	685
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,275
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.1250

Radial Contact

Bearing information

Learn more about RB055CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB055

Kaydon Equivalent: KB055CP0

NSK Equivalent: NBC13907

RBC Equivalent: KB055CP0*RBC

Silverthin Equivalent: SB055CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB055CP0 Specifications
Product Type	Radial Contact
Part Number	RB055CP0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	5.734
Land Diameter Outer Ring [Lo]	5.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.41
Radial Static Load (lbs.)	2,360
Radial Dynamic Load (lbs.)	984
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,275
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.2500

Radial Contact

Bearing information

Learn more about RC055CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC055

Kaydon Equivalent: KC055CP0

NSK Equivalent: NBC13909

RBC Equivalent: KC055CP0*RBC

Silverthin Equivalent: SC055CP0

NSN Alternative: 3110-00-275-2896

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC055CP0 Specifications
Product Type	Radial Contact
Part Number	RC055CP0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	5.781
Land Diameter Outer Ring [Lo]	5.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.59
Radial Static Load (lbs.)	2,830
Radial Dynamic Load (lbs.)	1,274
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,300
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.5000

Radial Contact

Bearing information

Learn more about RD055CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD055

Kaydon Equivalent: KD055CP0

NSK Equivalent: NBC13912

RBC Equivalent: KD055CP0*RBC

Silverthin Equivalent: SD055CP0

NSN Equivalent: 3110-00-894-7061

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD055CP0 Specifications
Product Type	Radial Contact
Part Number	RD055CP0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	5.875
Land Diameter Outer Ring [Lo]	6.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.06
Radial Static Load (lbs.)	4,100
Radial Dynamic Load (lbs.)	2,063
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

7.0000

Radial Contact

Bearing information

Learn more about RF055CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF055

Kaydon Equivalent: KF055CP0

NSK Equivalent: NBC13919

RBC Equivalent: KF055CP0*RBC

Silverthin Equivalent: SF055CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF055CP0 Specifications
Product Type	Radial Contact
Part Number	RF055CP0
Bore Diameter [b]	5.5000
Outside Diameter [D]	7.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	6.063
Land Diameter Outer Ring [Lo]	6.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.50
Radial Static Load (lbs.)	7,050
Radial Dynamic Load (lbs.)	4,116
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,775
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

7.5000

Radial Contact

Bearing information

Learn more about RG055CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG055

Kaydon Equivalent: KG055CP0

NSK Equivalent: NBC13925

RBC Equivalent: KG055CP0*RBC

Silverthin Equivalent: SG055CP0

NSN Equivalent: 3110-01-328-2348

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG055CP0 Specifications
Product Type	Radial Contact
Part Number	RG055CP0
Bore Diameter [b]	5.5000
Outside Diameter [D]	7.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	6.250
Land Diameter Outer Ring [Lo]	6.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	4.70
Radial Static Load (lbs.)	10,400
Radial Dynamic Load (lbs.)	6,850
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

6.5000

Radial Contact

Bearing information

Learn more about RA060CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA060

Kaydon Equivalent: KA060CP0

NSK Equivalent: NBC15206

RBC Equivalent: KA060CP0*RBC

Silverthin Equivalent: SA060CP0

NSN Equivalent: 3110-00-854-4539

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA060CP0 Specifications
Product Type	Radial Contact
Part Number	RA060CP0
Bore Diameter [b]	6.0000
Outside Diameter [D]	6.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	6.188
Land Diameter Outer Ring [Lo]	6.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.28
Radial Static Load (lbs.)	1,900
Radial Dynamic Load (lbs.)	720
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,950
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

6.6250

Radial Contact

Bearing information

Learn more about RB060CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB060

Kaydon Equivalent: KB060CP0

NSK Equivalent: NBC15207

RBC Equivalent: KB060CP0*RBC

Silverthin Equivalent: SB060CP0

NSN Equivalent: 3110-01-180-8762

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB060CP0 Specifications
Product Type	Radial Contact
Part Number	RB060CP0
Bore Diameter [b]	6.0000
Outside Diameter [D]	6.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	6.234
Land Diameter Outer Ring [Lo]	6.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.44
Radial Static Load (lbs.)	2,560
Radial Dynamic Load (lbs.)	1,034
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

6.7500

Radial Contact

Bearing information

Learn more about RC060CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC060

Kaydon Equivalent: KC060CP0

NSK Equivalent: NBC15209

RBC Equivalent: KC060CP0*RBC

Silverthin Equivalent: SC060CP0

NSN Equivalent: 3110-00-105-5622

NSN Alternative: 3110-01-321-0597

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC060CP0 Specifications
Product Type	Radial Contact
Part Number	RC060CP0
Bore Diameter [b]	6.0000
Outside Diameter [D]	6.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	6.281
Land Diameter Outer Ring [Lo]	6.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.63
Radial Static Load (lbs.)	3,070
Radial Dynamic Load (lbs.)	1,337
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

7.0000

Radial Contact

Bearing information

Learn more about RD060CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD060

Kaydon Equivalent: KD060CP0

NSK Equivalent: NBC15212

RBC Equivalent: KD060CP0*RBC

Silverthin Equivalent: SD060CP0

NSN Equivalent: 3110-01-569-3312

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD060CP0 Specifications
Product Type	Radial Contact
Part Number	RD060CP0
Bore Diameter [b]	6.0000
Outside Diameter [D]	7.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	6.375
Land Diameter Outer Ring [Lo]	6.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.16
Radial Static Load (lbs.)	4,450
Radial Dynamic Load (lbs.)	2,160
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

7.5000

Radial Contact

Bearing information

Learn more about RF060CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF060

Kaydon Equivalent: KF060CP0

NSK Equivalent: NBC15219

RBC Equivalent: KF060CP0*RBC

Silverthin Equivalent: SF060CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF060CP0 Specifications
Product Type	Radial Contact
Part Number	RF060CP0
Bore Diameter [b]	6.0000
Outside Diameter [D]	7.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	6.563
Land Diameter Outer Ring [Lo]	6.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.70
Radial Static Load (lbs.)	7,620
Radial Dynamic Load (lbs.)	4,291
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,475
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

8.0000

Radial Contact

Bearing information

Learn more about RG060CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG060

Kaydon Equivalent: KG060CP0

NSK Equivalent: NBC15225

RBC Equivalent: KG060CP0*RBC

Silverthin Equivalent: SG060CP0

NSN Alternative: 3110-01-083-4157

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG060CP0 Specifications
Product Type	Radial Contact
Part Number	RG060CP0
Bore Diameter [b]	6.0000
Outside Diameter [D]	8.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	6.750
Land Diameter Outer Ring [Lo]	7.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	5.10
Radial Static Load (lbs.)	11,490
Radial Dynamic Load (lbs.)	7,241
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.0000

Radial Contact

Bearing information

Learn more about RA065CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA065

Kaydon Equivalent: KA065CP0

NSK Equivalent: NBC16506

RBC Equivalent: KA065CP0*RBC

Silverthin Equivalent: SA065CP0

NSN Equivalent: 3110-00-916-3157

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA065CP0 Specifications
Product Type	Radial Contact
Part Number	RA065CP0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	6.688
Land Diameter Outer Ring [Lo]	6.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.30
Radial Static Load (lbs.)	2,050
Radial Dynamic Load (lbs.)	754
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,625
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.1250

Radial Contact

Bearing information

Learn more about RB065CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB065

Kaydon Equivalent: KB065CP0

NSK Equivalent: NBC16507

RBC Equivalent: KB065CP0*RBC

Silverthin Equivalent: SB065CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB065CP0 Specifications
Product Type	Radial Contact
Part Number	RB065CP0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	6.734
Land Diameter Outer Ring [Lo]	6.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.47
Radial Static Load (lbs.)	2,760
Radial Dynamic Load (lbs.)	1,082
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,775
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.2500

Radial Contact

Bearing information

Learn more about RC065CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC065

Kaydon Equivalent: KC065CP0

NSK Equivalent: NBC16509

RBC Equivalent: KC065CP0*RBC

Silverthin Equivalent: SC065CP0

NSN Equivalent: 3110-00-566-1183

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC065CP0 Specifications
Product Type	Radial Contact
Part Number	RC065CP0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	6.781
Land Diameter Outer Ring [Lo]	6.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.68
Radial Static Load (lbs.)	3,310
Radial Dynamic Load (lbs.)	1,397
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,795
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.5000

Radial Contact

Bearing information

Learn more about RD065CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD065

Kaydon Equivalent: KD065CP0

NSK Equivalent: NBC16512

RBC Equivalent: KD065CP0*RBC

Silverthin Equivalent: SD065CP0

NSN Equivalent: 3110-00-932-3831

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD065CP0 Specifications
Product Type	Radial Contact
Part Number	RD065CP0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	6.875
Land Diameter Outer Ring [Lo]	7.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.22
Radial Static Load (lbs.)	4,790
Radial Dynamic Load (lbs.)	2,254
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,750
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

8.0000

Radial Contact

Bearing information

Learn more about RF065CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF065

Kaydon Equivalent: KF065CP0

NSK Equivalent: NBC16519

RBC Equivalent: KF065CP0*RBC

Silverthin Equivalent: SF065CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF065CP0 Specifications
Product Type	Radial Contact
Part Number	RF065CP0
Bore Diameter [b]	6.5000
Outside Diameter [D]	8.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	7.630
Land Diameter Outer Ring [Lo]	7.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.90
Radial Static Load (lbs.)	8,180
Radial Dynamic Load (lbs.)	4,461
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

8.5000

Radial Contact

Bearing information

Learn more about RG065CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG065

Kaydon Equivalent: KG065CP0

NSK Equivalent: NBC16525

RBC Equivalent: KG065CP0*RBC

Silverthin Equivalent: SG065CP0

NSN Alternative: 3110-01-328-6730

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG065CP0 Specifications
Product Type	Radial Contact
Part Number	RG065CP0
Bore Diameter [b]	6.5000
Outside Diameter [D]	8.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	7.250
Land Diameter Outer Ring [Lo]	7.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	5.40
Radial Static Load (lbs.)	12,040
Radial Dynamic Load (lbs.)	7,393
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

7.5000

Radial Contact

Bearing information

Learn more about RA070CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA070

Kaydon Equivalent: KA070CP0

NSK Equivalent: NBC17706

RBC Equivalent: KA070CP0*RBC

Silverthin Equivalent: SA070CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA070CP0 Specifications
Product Type	Radial Contact
Part Number	RA070CP0
Bore Diameter [b]	7.0000
Outside Diameter [D]	7.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	7.188
Land Diameter Outer Ring [Lo]	7.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.31
Radial Static Load (lbs.)	2,200
Radial Dynamic Load (lbs.)	787
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,300
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

7.6250

Radial Contact

Bearing information

Learn more about RB070CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB070

Kaydon Equivalent: KB070CP0

NSK Equivalent: NBC17707

RBC Equivalent: KB070CP0*RBC

Silverthin Equivalent: SB070CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB070CP0 Specifications
Product Type	Radial Contact
Part Number	RB070CP0
Bore Diameter [b]	7.0000
Outside Diameter [D]	7.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	7.234
Land Diameter Outer Ring [Lo]	7.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.5
Radial Static Load (lbs.)	2,970
Radial Dynamic Load (lbs.)	1,129
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

7.7500

Radial Contact

Bearing information

Learn more about RC070CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC070

Kaydon Equivalent: KC070CP0

NSK Equivalent: NBC17709

RBC Equivalent: KC070CP0*RBC

Silverthin Equivalent: SC070CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC070CP0 Specifications
Product Type	Radial Contact
Part Number	RC070CP0
Bore Diameter [b]	7.0000
Outside Diameter [D]	7.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	7.281
Land Diameter Outer Ring [Lo]	7.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.73
Radial Static Load (lbs.)	3,550
Radial Dynamic Load (lbs.)	1,457
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,580
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

8.0000

Radial Contact

Bearing information

Learn more about RD070CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD070

Kaydon Equivalent: KD070CP0

NSK Equivalent: NBC17712

RBC Equivalent: KD070CP0*RBC

Silverthin Equivalent: SD070CP0

NSN Equivalent: 3110-01-080-9265

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD070CP0 Specifications
Product Type	Radial Contact
Part Number	RD070CP0
Bore Diameter [b]	7.0000
Outside Diameter [D]	8.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	7.375
Land Diameter Outer Ring [Lo]	7.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.31
Radial Static Load (lbs.)	5,130
Radial Dynamic Load (lbs.)	2,345
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,550
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

8.5000

Radial Contact

Bearing information

Learn more about RF070CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF070

Kaydon Equivalent: KF070CP0

NSK Equivalent: NBC17719

RBC Equivalent: KF070CP0*RBC

Silverthin Equivalent: SF070CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF070CP0 Specifications
Product Type	Radial Contact
Part Number	RF070CP0
Bore Diameter [b]	7.0000
Outside Diameter [D]	8.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	7.563
Land Diameter Outer Ring [Lo]	7.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	3.20
Radial Static Load (lbs.)	8,750
Radial Dynamic Load (lbs.)	4,628
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

9.0000

Radial Contact

Bearing information

Learn more about RG070CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG070

Kaydon Equivalent: KG070CP0

NSK Equivalent: NBC17725

RBC Equivalent: KG070CP0*RBC

Silverthin Equivalent: SG070CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG070CP0 Specifications
Product Type	Radial Contact
Part Number	RG070CP0
Bore Diameter [b]	7.0000
Outside Diameter [D]	9.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	7.750
Land Diameter Outer Ring [Lo]	8.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	5.80
Radial Static Load (lbs.)	13,130
Radial Dynamic Load (lbs.)	7,764
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.0000

Radial Contact

Bearing information

Learn more about RA075CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA075

Kaydon Equivalent: KA075CP0

RBC Equivalent: KA075CP0*RBC

Silverthin Equivalent: SA075CP0

NSN Equivalent: 3110-00-471-9181

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA075CP0 Specifications
Product Type	Radial Contact
Part Number	RA075CP0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	7.688
Land Diameter Outer Ring [Lo]	7.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.34
Radial Static Load (lbs.)	2,350
Radial Dynamic Load (lbs.)	820
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.1250

Radial Contact

Bearing information

Learn more about RB0750 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB075

Kaydon Equivalent: KB075CP0

RBC Equivalent: KB075CP0*RBC

Silverthin Equivalent: SB075CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB075CP0 Specifications
Product Type	Radial Contact
Part Number	RB075CP0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	7.734
Land Diameter Outer Ring [Lo]	7.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.53
Radial Static Load (lbs.)	3,170
Radial Dynamic Load (lbs.)	1,175
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.2500

Radial Contact

Bearing information

Learn more about RC075CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC075

Kaydon Equivalent: KC075CP0

RBC Equivalent: KC075CP0*RBC

Silverthin Equivalent: SC075CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC075CP0 Specifications
Product Type	Radial Contact
Part Number	RC075CP0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	7.781
Land Diameter Outer Ring [Lo]	7.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.78
Radial Static Load (lbs.)	3,790
Radial Dynamic Load (lbs.)	1,514
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.5000

Radial Contact

Bearing information

Learn more about RD075CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD075

Kaydon Equivalent: KD075CP0

RBC Equivalent: KD075CP0*RBC

Silverthin Equivalent: SD075CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD075CP0 Specifications
Product Type	Radial Contact
Part Number	RD075CP0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	7.875
Land Diameter Outer Ring [Lo]	8.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.41
Radial Static Load (lbs.)	5,470
Radial Dynamic Load (lbs.)	2,434
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

9.0000

Radial Contact

Bearing information

Learn more about RF075CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF075

Kaydon Equivalent: KF075CP0

RBC Equivalent: KF075CP0*RBC

Silverthin Equivalent: SF075CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF075CP0 Specifications
Product Type	Radial Contact
Part Number	RF075CP0
Bore Diameter [b]	7.5000
Outside Diameter [D]	9.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	8.063
Land Diameter Outer Ring [Lo]	8.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	3.40
Radial Static Load (lbs.)	9,310
Radial Dynamic Load (lbs.)	4,791
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

9.5000

Radial Contact

Bearing information

Learn more about RG075CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG075

Kaydon Equivalent: KG075CP0

RBC Equivalent: KG075CP0*RBC

Silverthin Equivalent: SG075CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG075CP0 Specifications
Product Type	Radial Contact
Part Number	RG075CP0
Bore Diameter [b]	7.5000
Outside Diameter [D]	9.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	8.250
Land Diameter Outer Ring [Lo]	8.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	6.10
Radial Static Load (lbs.)	13,680
Radial Dynamic Load (lbs.)	7,911
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

8.5000

Radial Contact

Bearing information

Learn more about RA080CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA080

Kaydon Equivalent: KA080CP0

RBC Equivalent: KA080CP0*RBC

Silverthin Equivalent: SA080CP0

NSN Equivalent: 3110-00-056-0991

NSN Alternative: 3110-01-174-9252

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA080CP0 Specifications
Product Type	Radial Contact
Part Number	RA080CP0
Bore Diameter [b]	8.0000
Outside Diameter [D]	8.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	8.188
Land Diameter Outer Ring [Lo]	8.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.38
Radial Static Load (lbs.)	2,500
Radial Dynamic Load (lbs.)	851
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,875
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

8.6250

Radial Contact

Bearing information

Learn more about RB080CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB080

Kaydon Equivalent: KB080CP0

RBC Equivalent: KB080CP0*RBC

Silverthin Equivalent: SB080CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB080CP0 Specifications
Product Type	Radial Contact
Part Number	RB080CP0
Bore Diameter [b]	8.0000
Outside Diameter [D]	8.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	8.234
Land Diameter Outer Ring [Lo]	8.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.57
Radial Static Load (lbs.)	3,370
Radial Dynamic Load (lbs.)	1,219
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,875
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

8.7500

Radial Contact

Bearing information

Learn more about RC080CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC080

Kaydon Equivalent: KC080CP0

RBC Equivalent: KC080CP0*RBC

Silverthin Equivalent: SC080CP0

Inch Series Bearings	RC080CP0 Specifications
Product Type	Radial Contact
Part Number	RC080CP0
Bore Diameter [b]	8.0000
Outside Diameter [D]	8.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	8.281
Land Diameter Outer Ring [Lo]	8.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.84
Radial Static Load (lbs.)	4,030
Radial Dynamic Load (lbs.)	1,570
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,260
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

9.0000

Radial Contact

Bearing information

Learn more about RD080CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD080

Kaydon Equivalent: KD080CP0

RBC Equivalent: KD080CP0*RBC

Silverthin Equivalent: SD080CP0

NSN Equivalent: 3110-00-952-0303

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD080CP0 Specifications
Product Type	Radial Contact
Part Number	RD080CP0
Bore Diameter [b]	8.0000
Outside Diameter [D]	9.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	8.375
Land Diameter Outer Ring [Lo]	8.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.53
Radial Static Load (lbs.)	5,810
Radial Dynamic Load (lbs.)	2,520
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

9.5000

Radial Contact

Bearing information

Learn more about RF080CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF080

Kaydon Equivalent: KF080CP0

RBC Equivalent: KF080CP0*RBC

Silverthin Equivalent: SF080CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF080CP0 Specifications
Product Type	Radial Contact
Part Number	RF080CP0
Bore Diameter [b]	8.0000
Outside Diameter [D]	9.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	8.563
Land Diameter Outer Ring [Lo]	8.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	3.50
Radial Static Load (lbs.)	9,880
Radial Dynamic Load (lbs.)	4,949
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

10.0000

Radial Contact

Bearing information

Learn more about RG080CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG080

Kaydon Equivalent: KG080CP0

RBC Equivalent: KG080CP0*RBC

Silverthin Equivalent: SG080CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG080CP0 Specifications
Product Type	Radial Contact
Part Number	RG080CP0
Bore Diameter [b]	8.0000
Outside Diameter [D]	10.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	8.750
Land Diameter Outer Ring [Lo]	9.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	6.50
Radial Static Load (lbs.)	14,770
Radial Dynamic Load (lbs.)	8,265
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

9.5000

Radial Contact

Bearing information

Learn more about RA090CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA090

Kaydon Equivalent: KA090CP0

RBC Equivalent: KA090CP0*RBC

Silverthin Equivalent: SA090CP0

NSN Equivalent: 3110-00-828-9457

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA090CP0 Specifications
Product Type	Radial Contact
Part Number	RA090CP0
Bore Diameter [b]	9.0000
Outside Diameter [D]	9.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	9.188
Land Diameter Outer Ring [Lo]	9.319
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.44
Radial Static Load (lbs.)	2,810
Radial Dynamic Load (lbs.)	912
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,325
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

9.6250

Radial Contact

Bearing information

Learn more about RB090CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB090

Kaydon Equivalent: KB090CP0

RBC Equivalent: KB090CP0*RBC

Silverthin Equivalent: SB090CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB090CP0 Specifications
Product Type	Radial Contact
Part Number	RB090CP0
Bore Diameter [b]	9.0000
Outside Diameter [D]	9.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	9.234
Land Diameter Outer Ring [Lo]	9.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.66
Radial Static Load (lbs.)	3,780
Radial Dynamic Load (lbs.)	1,304
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,725
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

9.7500

Radial Contact

Bearing information

Learn more about RC090CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC090

Kaydon Equivalent: KC090CP0

RBC Equivalent: KC090CP0*RBC

Silverthin Equivalent: SC090CP0

NSN Equivalent: 3110-00-448-7389

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC090CP0 Specifications
Product Type	Radial Contact
Part Number	RC090CP0
Bore Diameter [b]	9.0000
Outside Diameter [D]	9.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	9.281
Land Diameter Outer Ring [Lo]	9.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.94
Radial Static Load (lbs.)	4,510
Radial Dynamic Load (lbs.)	1,678
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,675
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

10.0000

Radial Contact

Bearing information

Learn more about RD090CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD090

Kaydon Equivalent: KD090CP0

RBC Equivalent: KD090CP0*RBC

Silverthin Equivalent: SD090CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD090CP0 Specifications
Product Type	Radial Contact
Part Number	RD090CP0
Bore Diameter [b]	9.0000
Outside Diameter [D]	10.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	9.375
Land Diameter Outer Ring [Lo]	9.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.72
Radial Static Load (lbs.)	6,500
Radial Dynamic Load (lbs.)	2,688
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

10.5000

Radial Contact

Bearing information

Learn more about RF090CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality application. SSB is a USA manufactured bearing of high quality Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF090

Kaydon Equivalent: KF090CP0

RBC Equivalent: KF090CP0*RBC

Silverthin Equivalent: SF090CP0

NSN Equivalent: 3110-00-843-0135

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF090CP0 Specifications
Product Type	Radial Contact
Part Number	RF090CP0
Bore Diameter [b]	9.0000
Outside Diameter [D]	10.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	9.563
Land Diameter Outer Ring [Lo]	9.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	3.90
Radial Static Load (lbs.)	11,000
Radial Dynamic Load (lbs.)	5,256
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

11.0000

Radial Contact

Bearing information

Learn more about RG090CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG090

Kaydon Equivalent: KG090CP0

RBC Equivalent: KG090CP0*RBC

Silverthin Equivalent: SG090CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG090CP0 Specifications
Product Type	Radial Contact
Part Number	RG090CP0
Bore Diameter [b]	9.0000
Outside Diameter [D]	11.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	9.750
Land Diameter Outer Ring [Lo]	10.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	7.20
Radial Static Load (lbs.)	16,420
Radial Dynamic Load (lbs.)	8,743
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,300
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

10.5000

Radial Contact

Bearing information

Learn more about RA100CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA100

Kaydon Equivalent: KA1000CP0

RBC Equivalent: KA1000CP0*RBC

Silverthin Equivalent: SA100CP0

NSN Alternative: 3110-01-273-2494

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA100CP0 Specifications
Product Type	Radial Contact
Part Number	RA100CP0
Bore Diameter [b]	10.0000
Outside Diameter [D]	10.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	10.188
Land Diameter Outer Ring [Lo]	10.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.50
Radial Static Load (lbs.)	3,110
Radial Dynamic Load (lbs.)	969
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

10.6250

Radial Contact

Bearing information

Learn more about RB100CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB100

Kaydon Equivalent: KB100CP0

RBC Equivalent: KB100CP0*RBC

Silverthin Equivalent: SB100CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB100CP0 Specifications
Product Type	Radial Contact
Part Number	RB100CP0
Bore Diameter [b]	10.0000
Outside Diameter [D]	10.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	10.234
Land Diameter Outer Ring [Lo]	10.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.73
Radial Static Load (lbs.)	4,190
Radial Dynamic Load (lbs.)	1,386
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

10.7500

Radial Contact

Bearing information

Learn more about RC100CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC100

Kaydon Equivalent: KC100CP0

RBC Equivalent: KC100CP0*RBC

Silverthin Equivalent: SC100CP0

NSN Equivalent: 3110-01-063-7993

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC100CP0 Specifications
Product Type	Radial Contact
Part Number	RC100CP0
Bore Diameter [b]	10.0000
Outside Diameter [D]	10.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	10.281
Land Diameter Outer Ring [Lo]	10.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	1.06
Radial Static Load (lbs.)	4,990
Radial Dynamic Load (lbs.)	1,781
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

11.0000

Radial Contact

Bearing information

Learn more about RD100CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD100

Kaydon Equivalent: KD100CP0

RBC Equivalent: KD100CP0*RBC

Silverthin Equivalent: SD100CP0

NSN Equivalent: 3110-00-137-4135

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD100CP0 Specifications
Product Type	Radial Contact
Part Number	RD100CP0
Bore Diameter [b]	10.0000
Outside Diameter [D]	11.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	10.375
Land Diameter Outer Ring [Lo]	10.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.88
Radial Static Load (lbs.)	7,180
Radial Dynamic Load (lbs.)	2,847
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

11.5000

Radial Contact

Bearing information

Learn more about RF100CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF100

Kaydon Equivalent: KF100CP0

RBC Equivalent: KF100CP0*RBC

Silverthin Equivalent: SF100CP0

NSN Equivalent: 3110-01-288-2414

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF100CP0 Specifications
Product Type	Radial Contact
Part Number	RF100CP0
Bore Diameter [b]	10.0000
Outside Diameter [D]	11.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	10.563
Land Diameter Outer Ring [Lo]	10.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	4.30
Radial Static Load (lbs.)	12,130
Radial Dynamic Load (lbs.)	5,550
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

12.0000

Radial Contact

Bearing information

Learn more about RG100CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG100

Kaydon Equivalent: KG100CP0

RBC Equivalent: KG100CP0*RBC

Silverthin Equivalent: SG100CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG100CP0 Specifications
Product Type	Radial Contact
Part Number	RG100CP0
Bore Diameter [b]	10.0000
Outside Diameter [D]	12.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	10.750
Land Diameter Outer Ring [Lo]	11.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	7.90
Radial Static Load (lbs.)	18,060
Radial Dynamic Load (lbs.)	9,204
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

11.5000

Radial Contact

Bearing information

Learn more about RA110CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA110

Kaydon Equivalent: KA110CP0

RBC Equivalent: KA110CP0*RBC

Silverthin Equivalent: SA110CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA110CP0 Specifications
Product Type	Radial Contact
Part Number	RA110CP0
Bore Diameter [b]	11.0000
Outside Diameter [D]	11.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	11.188
Land Diameter Outer Ring [Lo]	11.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.52
Radial Static Load (lbs.)	3,410
Radial Dynamic Load (lbs.)	1,025
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,100
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

11.6250

Radial Contact

Bearing information

Learn more about RB110CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB110

Kaydon Equivalent: KB110CP0

RBC Equivalent: KB110CP0*RBC

Silverthin Equivalent: SB110CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB110CP0 Specifications
Product Type	Radial Contact
Part Number	RB110CP0
Bore Diameter [b]	11.0000
Outside Diameter [D]	11.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	11.234
Land Diameter Outer Ring [Lo]	11.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.75
Radial Static Load (lbs.)	4,590
Radial Dynamic Load (lbs.)	1,464
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,150
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

11.7500

Radial Contact

Bearing information

Learn more about RC110CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC110

Kaydon Equivalent: KC110CP0

RBC Equivalent: KC110CP0*RBC

Silverthin Equivalent: SC110CP0

NSN Equivalent: 3110-00-407-6224

NSN Alternative: 3110-01-266-2880

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC110CP0 Specifications
Product Type	Radial Contact
Part Number	RC110CP0
Bore Diameter [b]	11.0000
Outside Diameter [D]	11.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	11.281
Land Diameter Outer Ring [Lo]	11.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	1.16
Radial Static Load (lbs.)	5,470
Radial Dynamic Load (lbs.)	1,879
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,370
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

12.0000

Radial Contact

Bearing information

Learn more about RD110CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD110

Kaydon Equivalent: KD110CP0

RBC Equivalent: KD110CP0*RBC

Silverthin Equivalent: SD110CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD110CP0 Specifications
Product Type	Radial Contact
Part Number	RD110CP0
Bore Diameter [b]	11.0000
Outside Diameter [D]	12.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	11.375
Land Diameter Outer Ring [Lo]	11.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	2.06
Radial Static Load (lbs.)	7,870
Radial Dynamic Load (lbs.)	3,000
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,360
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

12.5000

Radial Contact

Bearing information

Learn more about RF110CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF110

Kaydon Equivalent: KF110CP0

RBC Equivalent: KF110CP0*RBC

Silverthin Equivalent: SF110CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF110CP0 Specifications
Product Type	Radial Contact
Part Number	RF110CP0
Bore Diameter [b]	11.0000
Outside Diameter [D]	12.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	11.563
Land Diameter Outer Ring [Lo]	11.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	4.80
Radial Static Load (lbs.)	13,260
Radial Dynamic Load (lbs.)	5,833
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

13.0000

Radial Contact

Bearing information

Learn more about RG110CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG110

Kaydon Equivalent: KG110CP0

RBC Equivalent: KG110CP0*RBC

Silverthin Equivalent: SG110CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG110CP0 Specifications
Product Type	Radial Contact
Part Number	RG110CP0
Bore Diameter [b]	11.0000
Outside Diameter [D]	13.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	11.750
Land Diameter Outer Ring [Lo]	12.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	8.60
Radial Static Load (lbs.)	19,700
Radial Dynamic Load (lbs.)	9,648
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

12.5000

Radial Contact

Bearing information

Learn more about RA120CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCA120

Kaydon Equivalent: KA120CP0

RBC Equivalent: KA120CP0*RBC

Silverthin Equivalent: SA120CP0

NSN Equivalent: 3110-01-066-7825

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA120CP0 Specifications
Product Type	Radial Contact
Part Number	RA120CP0
Bore Diameter [b]	12.0000
Outside Diameter [D]	12.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	12.188
Land Diameter Outer Ring [Lo]	12.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.56
Radial Static Load (lbs.)	3,720
Radial Dynamic Load (lbs.)	1,078
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

12.6250

Radial Contact

Bearing information

Learn more about RB120CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCB120

Kaydon Equivalent: KB120CP0

RBC Equivalent: KB120CP0*RBC

Silverthin Equivalent: SB120CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB120CP0 Specifications
Product Type	Radial Contact
Part Number	RB120CP0
Bore Diameter [b]	12.0000
Outside Diameter [D]	12.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	12.234
Land Diameter Outer Ring [Lo]	12.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.83
Radial Static Load (lbs.)	5,000
Radial Dynamic Load (lbs.)	1,539
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

12.7500

Radial Contact

Bearing information

Learn more about RC120CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCC120

Kaydon Equivalent: KC120CP0

RBC Equivalent: KC120CP0*RBC

Silverthin Equivalent: SC120CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC120CP0 Specifications
Product Type	Radial Contact
Part Number	RC120CP0
Bore Diameter [b]	12.0000
Outside Diameter [D]	12.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	12.281
Land Diameter Outer Ring [Lo]	12.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	1.25
Radial Static Load (lbs.)	5,950
Radial Dynamic Load (lbs.)	1,974
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,700
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

13.0000

Radial Contact

Bearing information

Learn more about RD120CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD120

Kaydon Equivalent: KD120CP0

RBC Equivalent: KD120CP0*RBC

Silverthin Equivalent: SD120CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD120CP0 Specifications
Product Type	Radial Contact
Part Number	RD120CP0
Bore Diameter [b]	12.0000
Outside Diameter [D]	13.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	12.375
Land Diameter Outer Ring [Lo]	12.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	2.25
Radial Static Load (lbs.)	8,550
Radial Dynamic Load (lbs.)	3,148
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

13.5000

Radial Contact

Bearing information

Learn more about RF120CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF120

Kaydon Equivalent: KF120CP0

RBC Equivalent: KF120CP0*RBC

Silverthin Equivalent: SF120CP0

NSN Equivalent: 3110-00-903-7355

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF120CP0 Specifications
Product Type	Radial Contact
Part Number	RF120CP0
Bore Diameter [b]	12.0000
Outside Diameter [D]	13.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	12.563
Land Diameter Outer Ring [Lo]	12.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	5.20
Radial Static Load (lbs.)	14,390
Radial Dynamic Load (lbs.)	6,105
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

14.0000

Radial Contact

Bearing information

Learn more about RG120CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG120

Kaydon Equivalent: KG120CP0

RBC Equivalent: KG120CP0*RBC

Silverthin Equivalent: SG120CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG120CP0 Specifications
Product Type	Radial Contact
Part Number	RG120CP0
Bore Diameter [b]	12.0000
Outside Diameter [D]	14.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	12.750
Land Diameter Outer Ring [Lo]	13.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	9.30
Radial Static Load (lbs.)	21,340
Radial Dynamic Load (lbs.)	10,074
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

14.0000

15.0000

Radial Contact

Bearing information

Learn more about RD140CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD140

Kaydon Equivalent: KD140CP0

RBC Equivalent: KD140CP0*RBC

Silverthin Equivalent: SD140CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD140CP0 Specifications
Product Type	Radial Contact
Part Number	RD140CP0
Bore Diameter [b]	14.0000
Outside Diameter [D]	15.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	14.375
Land Diameter Outer Ring [Lo]	14.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	2.73
Radial Static Load (lbs.)	9,920
Radial Dynamic Load (lbs.)	3,427
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,070
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

14.0000

15.5000

Radial Contact

Bearing information

Learn more about RF140CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF140

Kaydon Equivalent: KF140CP0

RBC Equivalent: KF140CP0*RBC

Silverthin Equivalent: SF140CP0

NSN Equivalent: 3110-01-367-6398

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF140CP0 Specifications
Product Type	Radial Contact
Part Number	RF140CP0
Bore Diameter [b]	14.0000
Outside Diameter [D]	15.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	14.563
Land Diameter Outer Ring [Lo]	14.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	6.00
Radial Static Load (lbs.)	16,650
Radial Dynamic Load (lbs.)	6,620
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,285
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

14.0000

16.0000

Radial Contact

Bearing information

Learn more about RG140CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG140

Kaydon Equivalent: KG140CP0

RBC Equivalent: KG140CP0*RBC

Silverthin Equivalent: SG140CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG140CP0 Specifications
Product Type	Radial Contact
Part Number	RG140CP0
Bore Diameter [b]	14.0000
Outside Diameter [D]	16.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	14.750
Land Diameter Outer Ring [Lo]	15.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	10.80
Radial Static Load (lbs.)	24,620
Radial Dynamic Load (lbs.)	10,886
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

16.0000

17.0000

Radial Contact

Bearing information

Learn more about RD160CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCD160

Kaydon Equivalent: KD160CP0

RBC Equivalent: KD160CP0*RBC

Silverthin Equivalent: SD160CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD160CP0 Specifications
Product Type	Radial Contact
Part Number	RD160CP0
Bore Diameter [b]	16.0000
Outside Diameter [D]	17.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	16.375
Land Diameter Outer Ring [Lo]	16.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	3.10
Radial Static Load (lbs.)	11,290
Radial Dynamic Load (lbs.)	3,688
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	750
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

16.0000

17.5000

Radial Contact

Bearing information

Learn more about RF160CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCF160

Kaydon Equivalent: KF160CP0

RBC Equivalent: KF160CP0*RBC

Silverthin Equivalent: SF160CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF160CP0 Specifications
Product Type	Radial Contact
Part Number	RF160CP0
Bore Diameter [b]	16.0000
Outside Diameter [D]	17.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	16.563
Land Diameter Outer Ring [Lo]	16.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	7.10
Radial Static Load (lbs.)	18,900
Radial Dynamic Load (lbs.)	7,104
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	937
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

16.0000

18.0000

Radial Contact

Bearing information

Learn more about RG160CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG160

Kaydon Equivalent: KG160CP0

RBC Equivalent: KG160CP0*RBC

Silverthin Equivalent: SG160CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG160CP0 Specifications
Product Type	Radial Contact
Part Number	RG160CP0
Bore Diameter [b]	16.0000
Outside Diameter [D]	18.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	16.750
Land Diameter Outer Ring [Lo]	17.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	12.30
Radial Static Load (lbs.)	27,910
Radial Dynamic Load (lbs.)	11,648
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,100
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

18.0000

20.0000

Radial Contact

Bearing information

Learn more about RG180CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG180

Kaydon Equivalent: KG180CP0

RBC Equivalent: KG180CP0*RBC

Silverthin Equivalent: SG180CP0

NSN Equivalent: 3110-01-335-7170

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG180CP0 Specifications
Product Type	Radial Contact
Part Number	RG180CP0
Bore Diameter [b]	18.0000
Outside Diameter [D]	20.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	18.750
Land Diameter Outer Ring [Lo]	19.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	13.70
Radial Static Load (lbs.)	31,190
Radial Dynamic Load (lbs.)	12,367
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

20.0000

22.0000

Radial Contact

Bearing information

Learn more about RG200CP0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSCG200

Kaydon Equivalent: KG200CP0

RBC Equivalent: KG200CP0*RBC

Silverthin Equivalent: SG200CP0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG200CP0 Specifications
Product Type	Radial Contact
Part Number	RG200CP0
Bore Diameter [b]	20.0000
Outside Diameter [D]	22.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	20.750
Land Diameter Outer Ring [Lo]	21.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	15.80
Radial Static Load (lbs.)	34,470
Radial Dynamic Load (lbs.)	13,044
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

Download Adobe Acrobat Reader

SSB - Thin Section Bearings & Slim Section Bearings

Contact Us

Please contact us at 909-464-1551 for your unique application challenges. . Slim Section Bearings look forward in working with you to help solve your next bearing project. You can also complete the following Application Data Sheet and email it back to us.

Made in USA

Slim Section Bearings, Inc. is the manufacturing division of Ritbearing Corp. With experience in manufacturing that began in 1987, we are able to give our customers the ability to obtain American-made thin section bearing products.

SSB Catalog - Slim Section Bearings Catalog

SSB Catalog

SSB: Slim Section Bearings catalog including standard production bearings and customized solutions

Download SSB Catalog
