Angular Open A-Type Bearing

Angular Open A-Type Bearing

Angular Open A-Type

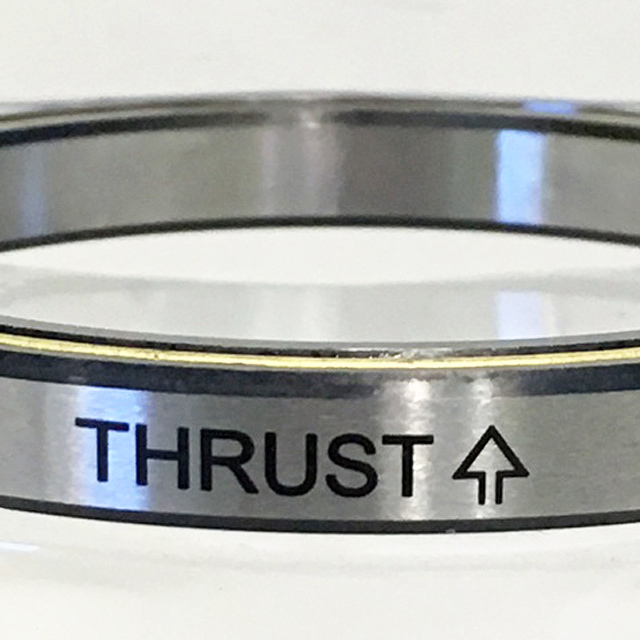

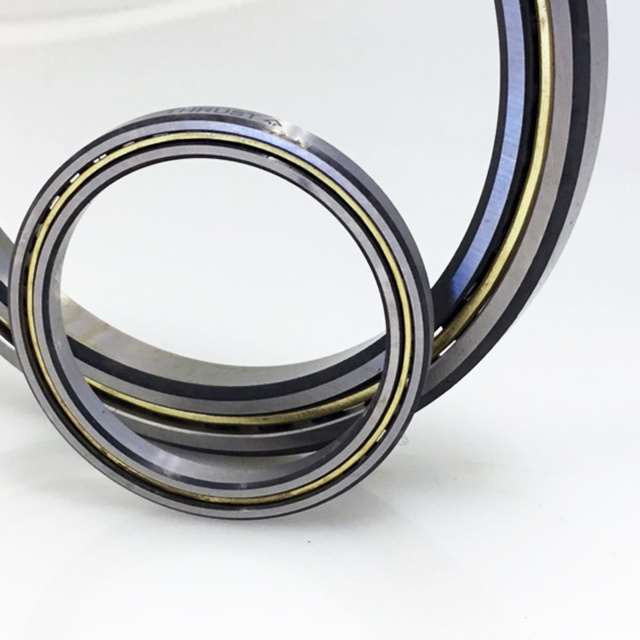

The A-Type Angular Contact Bearing is a single row ball bearing. This bearing can withstand high axial loads for demanding applications. The A-Type can also accept radial and combined loads. Applications often require these bearings to be used in a duplex paired fashion.

LOAD TYPE
Radial	Axial (Thrust)	Moment	Reversing	Combined
Good	Excellent	Paired-Excellent	Paired-Excellent	Good

Typically the A-Type Angular Contact Bearing is provided with a brass cage separator and an ABEC 1 rating class. Options abound with variations available in:

Material type for rings and rolling elements
Material thickness
Bore size
Precision class
Diametral clearance (Internal Fit)

Request a Quote

Applications

Antenna mounts
Bottling equipment
Blow out protectors
Camera mounts
Converting equipment
X-ray equipment
Food processing equipment
Gear boxes

Indexing tables
Instrument mounts
Labeling machines
Machine tools/ Lathe accessories
Medical equipment
Missile launchers
Oil well equipment

View All Applications

Specifications

Part Number

Bore

Outside Diameter

Type

1.0000

1.3750

Angular Contact

Bearing information

Learn more about RAA10AG0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEAA10

Kaydon Equivalent: KAA10AG0

NSK Equivalent: NBA2504

RBC Equivalent: KAA10AG0*RBC

Silverthin Equivalent: SAA10AG0

NSN Equivalent: 3110-01-063-2074

NSN Alternative: 3110-00-508-5520 , 3110-01-163-9973

Download Print PDF

Inch Series Bearings	RAA10AG0 Specifications
Product Type	Angular Contact
Part Number	RAA10AG0
Bore Diameter [b]	1.0000
Outside Diameter [D]	1.3750
Width [W]	0.1875
Land Diameter Inner Ring [Li]	1.141
Land Diameter Outer Ring [Lo]	1.234
Housing Fillet [f1]	1.274
Ball Diameter	0.015
Weight (lbs.)	28
Radial Static Load (lbs.)	0.03
Radial Dynamic Load (lbs.)	340
Thrust Static Load (lbs.)	194
Thrust Dynamic Load (lbs.)	970
Moment Static Load (lbs. -in.)	450
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	N/A
Speed (RPM) Axial	21,000
Material	52100 Bearing Steel

1.5000

1.8750

Angular Contact

Bearing information

Learn more about RAA15AG0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEAA15

Kaydon Equivalent: KAA15AG0

NSK Equivalent: NBA3804

RBC Equivalent: KAA15AG0*RBC

Silverthin Equivalent: SAA15AG0

NSN Equivalent: 3110-01-217-0821

NSN Alternative: 3110-01-169-7261

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RAA15AG0 Specifications
Product Type	Angular Contact
Part Number	RAA15AG0
Bore Diameter [b]	1.5000
Outside Diameter [D]	1.8750
Width [W]	0.1875
Land Diameter Inner Ring [Li]	1.641
Land Diameter Outer Ring [Lo]	1.734
Housing Fillet [f1]	1.774
Ball Diameter	0.015
Weight (lbs.)	40
Radial Static Load (lbs.)	0.04
Radial Dynamic Load (lbs.)	480
Thrust Static Load (lbs.)	238
Thrust Dynamic Load (lbs.)	1,380
Moment Static Load (lbs. -in.)	560
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	N/A
Speed (RPM) Axial	14,000
Material	52100 Bearing Steel

1.7500

2.1250

Angular Contact

Bearing information

Learn more about RAA17AG0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEAA17

Kaydon Equivalent: KAA17AG0

RBC Equivalent: KAA17AG0*RBC

Silverthin Equivalent: SAA17AG0

NSN Alternative: 3110-01-525-6843

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RAA17AG0 Specifications
Product Type	Angular Contact
Part Number	RAA17AG0
Bore Diameter [b]	1.7500
Outside Diameter [D]	2.1250
Width [W]	0.1875
Land Diameter Inner Ring [Li]	1.891
Land Diameter Outer Ring [Lo]	1.984
Housing Fillet [f1]	2.024
Ball Diameter	0.015
Weight (lbs.)	46
Radial Static Load (lbs.)	0.05
Radial Dynamic Load (lbs.)	530
Thrust Static Load (lbs.)	251
Thrust Dynamic Load (lbs.)	1,520
Moment Static Load (lbs. -in.)	600
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	N/A
Speed (RPM) Axial	12,000
Material	52100 Bearing Steel

2.0000

2.5000

Angular Contact

Bearing information

Learn more about RA020AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA020

Kaydon Equivalent: KA020AR0

NSK Equivalent: NBA5006

RBC Equivalent: KA020AR0*RBC

Silverthin Equivalent: SA020AR0

NSN Equivalent: 3110-00-462-4149

NSN Alternative: 3110-00-505-4595

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA020AR0 Specifications
Product Type	Angular Contact
Part Number	RA020AR0
Bore Diameter [b]	2.0000
Outside Diameter [D]	2.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	2.188
Land Diameter Outer Ring [Lo]	2.313
Housing Fillet [f1]	0.250
Ball Diameter	1/8
Weight (lbs.)	0.10
Radial Static Load (lbs.)	790
Radial Dynamic Load (lbs.)	405
Thrust Static Load (lbs.)	2,280
Thrust Dynamic Load (lbs.)	960
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	10,500
Material	52100 Bearing Steel

2.0000

2.6250

Angular Contact

Bearing information

Learn more about RB020AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB020

Kaydon Equivalent: KB020AR0

NSK Equivalent: NBA5007

RBC Equivalent: KB020AR0*RBC

Silverthin Equivalent: SB020AR0

NSN Equivalent: 3110-01-166-9576

NSN Alternative: 3110-00-024-5881

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB020AR0 Specifications
Product Type	Angular Contact
Part Number	RB020AR0
Bore Diameter [b]	2.0000
Outside Diameter [D]	2.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	2.234
Land Diameter Outer Ring [Lo]	2.391
Housing Fillet [f1]	0.400
Ball Diameter	5/32
Weight (lbs.)	0.15
Radial Static Load (lbs.)	1,090
Radial Dynamic Load (lbs.)	601
Thrust Static Load (lbs.)	3,150
Thrust Dynamic Load (lbs.)	1,380
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	10,500
Material	52100 Bearing Steel

2.5000

3.0000

Angular Contact

Bearing information

Learn more about RA025AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA025

Kaydon Equivalent: KA025AR0

NSK Equivalent: NBA6306

RBC Equivalent: KA025AR0*RBC

Silverthin Equivalent: SA025AR0

NSN Equivalent: 3110-01-526-6745

NSN Alternative: 3110-00-236-0056 , 3110-00-187-5727 , 3110-01-071-3839

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA025AR0 Specifications
Product Type	Angular Contact
Part Number	RA025AR0
Bore Diameter [b]	2.5000
Outside Diameter [D]	3.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	2.688
Land Diameter Outer Ring [Lo]	2.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.12
Radial Static Load (lbs.)	960
Radial Dynamic Load (lbs.)	459
Thrust Static Load (lbs.)	2,780
Thrust Dynamic Load (lbs.)	1,100
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	8,400
Material	52100 Bearing Steel

2.5000

3.1250

Angular Contact

Bearing information

Learn more about RB025AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB025

Kaydon Equivalent: KB025AR0

NSK Equivalent: NBA6307

RBC Equivalent: KB025AR0*RBC

Silverthin Equivalent: SB025AR0

NSN Equivalent: 3110-01-170-5583

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB025AR0 Specifications
Product Type	Angular Contact
Part Number	RB025AR0
Bore Diameter [b]	2.5000
Outside Diameter [D]	3.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	2.734
Land Diameter Outer Ring [Lo]	2.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.19
Radial Static Load (lbs.)	1,340
Radial Dynamic Load (lbs.)	675
Thrust Static Load (lbs.)	3,860
Thrust Dynamic Load (lbs.)	1,590
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	8,400
Material	52100 Bearing Steel

3.0000

3.5000

Angular Contact

Bearing information

Learn more about RA030AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA030

Kaydon Equivalent: KA030AR0

NSK Equivalent: NBA7606

RBC Equivalent: KA030AR0*RBC

Silverthin Equivalent: SA030AR0

NSN Equivalent: 3110-01-630-2348

NSN Alternative: 3110-00-490-4602

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA030AR0 Specifications
Product Type	Angular Contact
Part Number	RA030AR0
Bore Diameter [b]	3.0000
Outside Diameter [D]	3.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	3.188
Land Diameter Outer Ring [Lo]	3.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.14
Radial Static Load (lbs.)	1,140
Radial Dynamic Load (lbs.)	507
Thrust Static Load (lbs.)	3,290
Thrust Dynamic Load (lbs.)	1,230
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	6,000
Material	52100 Bearing Steel

3.0000

3.6250

Angular Contact

Bearing information

Learn more about RB030AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB030

Kaydon Equivalent: KB030AR0

NSK Equivalent: NBA7607

RBC Equivalent: KB030AR0*RBC

Silverthin Equivalent: SB030AR0

NSN Equivalent: 3110-00-223-1541

NSN Alternative: 3110-00-811-0890 , 3110-00-223-1541

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB030AR0 Specifications
Product Type	Angular Contact
Part Number	RB030AR0
Bore Diameter [b]	3.0000
Outside Diameter [D]	3.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	3.234
Land Diameter Outer Ring [Lo]	3.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.22
Radial Static Load (lbs.)	1,550
Radial Dynamic Load (lbs.)	734
Thrust Static Load (lbs.)	4,470
Thrust Dynamic Load (lbs.)	1,750
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	7,000
Material	52100 Bearing Steel

3.5000

4.0000

Angular Contact

Bearing information

Learn more about RA035AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA035

Kaydon Equivalent: KA035AR0

NSK Equivalent: NBA8806

RBC Equivalent: KA035AR0*RBC

Silverthin Equivalent: SA035AR0

NSN Equivalent: 3110-00-140-4876

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA035AR0 Specifications
Product Type	Angular Contact
Part Number	RA035AR0
Bore Diameter [b]	3.5000
Outside Diameter [D]	4.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	3.688
Land Diameter Outer Ring [Lo]	3.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.17
Radial Static Load (lbs.)	1,310
Radial Dynamic Load (lbs.)	552
Thrust Static Load (lbs.)	3,790
Thrust Dynamic Load (lbs.)	1,350
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,142
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

3.5000

4.1250

Angular Contact

Bearing information

Learn more about RB035AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB035

Kaydon Equivalent: KB035AR0

NSK Equivalent: NBA8807

RBC Equivalent: KB035AR0*RBC

Silverthin Equivalent: SB020AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB035AR0 Specifications
Product Type	Angular Contact
Part Number	RB035AR0
Bore Diameter [b]	3.5000
Outside Diameter [D]	4.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	3.734
Land Diameter Outer Ring [Lo]	3.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.27
Radial Static Load (lbs.)	1,790
Radial Dynamic Load (lbs.)	801
Thrust Static Load (lbs.)	5,801
Thrust Dynamic Load (lbs.)	1,930
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,145
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

4.5000

Angular Contact

Bearing information

Learn more about RA040AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA040

Kaydon Equivalent: KA040AR0

NSK Equivalent: NBA10106

RBC Equivalent: KA040AR0*RBC

Silverthin Equivalent: SA040AR0

NSN Equivalent: 3110-01-300-1805 , 3110-00-891-5286

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA040AR0 Specifications
Product Type	Angular Contact
Part Number	RA040AR0
Bore Diameter [b]	4.0000
Outside Diameter [D]	4.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.188
Land Diameter Outer Ring [Lo]	4.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.19
Radial Static Load (lbs.)	1,490
Radial Dynamic Load (lbs.)	595
Thrust Static Load (lbs.)	4,300
Thrust Dynamic Load (lbs.)	1,470
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

4.6250

Angular Contact

Bearing information

Learn more about RB040AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB040

Kaydon Equivalent: KB040AR0

NSK Equivalent: NBA10107

RBC Equivalent: KB040AR0*RBC

Silverthin Equivalent: SB040AR0

NSN Alternative: 3110-00-230-5242

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB040AR0 Specifications
Product Type	Angular Contact
Part Number	RB040AR0
Bore Diameter [b]	4.0000
Outside Diameter [D]	4.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.234
Land Diameter Outer Ring [Lo]	4.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.30
Radial Static Load (lbs.)	2,040
Radial Dynamic Load (lbs.)	865
Thrust Static Load (lbs.)	5,890
Thrust Dynamic Load (lbs.)	2,100
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

4.7500

Angular Contact

Bearing information

Learn more about RC040AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC040

Kaydon Equivalent: KC040AR0

NSK Equivalent: NBA10109

RBC Equivalent: KC040AR0*RBC

Silverthin Equivalent: SC040AR0

NSN Equivalent: 3110-01-161-8747

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC040AR0 Specifications
Product Type	Angular Contact
Part Number	RC040AR0
Bore Diameter [b]	4.0000
Outside Diameter [D]	4.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	4.281
Land Diameter Outer Ring [Lo]	4.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.44
Radial Static Load (lbs.)	2,550
Radial Dynamic Load (lbs.)	1,153
Thrust Static Load (lbs.)	7,360
Thrust Dynamic Load (lbs.)	2,770
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,275
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

5.0000

Angular Contact

Bearing information

Learn more about RD040AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED040

Kaydon Equivalent: KD040AR0

NSK Equivalent: NBA10112

RBC Equivalent: KD040AR0*RBC

Silverthin Equivalent: SD040AR0

NSN Alternative: 3110-01-116-1233 , 3110-01-134-5868 , 3110-01-502-9735

Inch Series Bearings	RD040AR0 Specifications
Product Type	Angular Contact
Part Number	RD040AR0
Bore Diameter [b]	4.0000
Outside Diameter [D]	5.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	4.375
Land Diameter Outer Ring [Lo]	4.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.8
Radial Static Load (lbs.)	3,550
Radial Dynamic Load (lbs.)	1,819
Thrust Static Load (lbs.)	10,260
Thrust Dynamic Load (lbs.)	4,260
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

5.5000

Angular Contact

Bearing information

Learn more about RF040AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF040

Kaydon Equivalent: KF040AR0

NSK Equivalent: NBA10119

RBC Equivalent: KF040AR0*RBC

Silverthin Equivalent: SF040AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF040AR0 Specifications
Product Type	Angular Contact
Part Number	RF040AR0
Bore Diameter [b]	4.0000
Outside Diameter [D]	5.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	4.563
Land Diameter Outer Ring [Lo]	4.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	1.92
Radial Static Load (lbs.)	6,350
Radial Dynamic Load (lbs.)	3,736
Thrust Static Load (lbs.)	18,340
Thrust Dynamic Load (lbs.)	8,420
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.0000

6.0000

Angular Contact

Bearing information

Learn more about RG040AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG040

Kaydon Equivalent: KG040AR0

NSK Equivalent: NBA10215

RBC Equivalent: KG040AR0*RBC

Silverthin Equivalent: SG040AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG040AR0 Specifications
Product Type	Angular Contact
Part Number	RG040AR0
Bore Diameter [b]	4.0000
Outside Diameter [D]	6.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	4.750
Land Diameter Outer Ring [Lo]	5.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	3.61
Radial Static Load (lbs.)	9,480
Radial Dynamic Load (lbs.)	6,281
Thrust Static Load (lbs.)	27,360
Thrust Dynamic Load (lbs.)	13,360
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	5,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

4.7500

Angular Contact

Bearing information

Learn more about RA042AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA042

Kaydon Equivalent: KA042AR0

NSK Equivalent: NBA10706

RBC Equivalent: KA042AR0*RBC

Silverthin Equivalent: SA042AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA042AR0 Specifications
Product Type	Angular Contact
Part Number	RA042AR0
Bore Diameter [b]	4.2500
Outside Diameter [D]	4.7500
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.438
Land Diameter Outer Ring [Lo]	4.563
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.20
Radial Static Load (lbs.)	1,580
Radial Dynamic Load (lbs.)	616
Thrust Static Load (lbs.)	4,550
Thrust Dynamic Load (lbs.)	1,530
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,235
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

4.8750

Angular Contact

Bearing information

Learn more about RB042AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB042

Kaydon Equivalent: KB042AR0

NSK Equivalent: NBA10707

RBC Equivalent: KB042AR0*RBC

Silverthin Equivalent: SB042AR0

NSN Equivalent: 3110-01-339-4623

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB042AR0 Specifications
Product Type	Angular Contact
Part Number	RB042AR0
Bore Diameter [b]	4.2500
Outside Diameter [D]	4.8750
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.484
Land Diameter Outer Ring [Lo]	4.641
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.31
Radial Static Load (lbs.)	2,150
Radial Dynamic Load (lbs.)	891
Thrust Static Load (lbs.)	6,200
Thrust Dynamic Load (lbs.)	2,170
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

5.0000

Angular Contact

Bearing information

Learn more about RC042AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC042

Kaydon Equivalent: KC042AR0

NSK Equivalent: NBA10709

RBC Equivalent: KC042AR0*RBC

Silverthin Equivalent: SC042AR0

Download Print PDF

Inch Series Bearings	RC042AR0 Specifications
Product Type	Angular Contact
Part Number	RC042AR0
Bore Diameter [b]	4.2500
Outside Diameter [D]	5.0000
Width [W]	0.3750
Land Diameter Inner Ring [Li]	4.531
Land Diameter Outer Ring [Lo]	4.719
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.46
Radial Static Load (lbs.)	2,710
Radial Dynamic Load (lbs.)	1,194
Thrust Static Load (lbs.)	7,820
Thrust Dynamic Load (lbs.)	2,880
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,240
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

5.2500

Angular Contact

Bearing information

Learn more about RD042AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED042

Kaydon Equivalent: KD042AR0

NSK Equivalent: NBA10712

RBC Equivalent: KD042AR0*RBC

Silverthin Equivalent: SD042AR0

NSN Equivalent: 3110-01-333-8148

NSN Alternative: 3110-01-148-7701

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD042AR0 Specifications
Product Type	Angular Contact
Part Number	RD042AR0
Bore Diameter [b]	4.2500
Outside Diameter [D]	5.2500
Width [W]	0.5000
Land Diameter Inner Ring [Li]	4.625
Land Diameter Outer Ring [Lo]	4.875
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.84
Radial Static Load (lbs.)	3,750
Radial Dynamic Load (lbs.)	1,876
Thrust Static Load (lbs.)	10,830
Thrust Dynamic Load (lbs.)	4,420
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,940
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

5.7500

Angular Contact

Bearing information

Learn more about RF042AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF042

Kaydon Equivalent: KF042AR0

NSK Equivalent: NBA10719

RBC Equivalent: KF042AR0*RBC

Silverthin Equivalent: SF042AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF042AR0 Specifications
Product Type	Angular Contact
Part Number	RF042AR0
Bore Diameter [b]	4.2500
Outside Diameter [D]	5.7500
Width [W]	0.7500
Land Diameter Inner Ring [Li]	4.813
Land Diameter Outer Ring [Lo]	5.188
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.04
Radial Static Load (lbs.)	6,600
Radial Dynamic Load (lbs.)	3,805
Thrust Static Load (lbs.)	19,050
Thrust Dynamic Load (lbs.)	8,630
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,900
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.2500

6.2500

Angular Contact

Bearing information

Learn more about RG042AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG042

Kaydon Equivalent: KG042AR0

NSK Equivalent: NBA10725

RBC Equivalent: KG042AR0*RBC

Silverthin Equivalent: SG042AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG042AR0 Specifications
Product Type	RG042AR0
Part Number	RG042AR0
Bore Diameter [b]	4.2500
Outside Diameter [D]	6.2500
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.000
Land Diameter Outer Ring [Lo]	5.500
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	3.83
Radial Static Load (lbs.)	9,950
Radial Dynamic Load (lbs.)	6,438
Thrust Static Load (lbs.)	28,730
Thrust Dynamic Load (lbs.)	14,090
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,900
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.0000

Angular Contact

Bearing information

Learn more about RA045AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA045

Kaydon Equivalent: KA045AR0

NSK Equivalent: NBA11406

RBC Equivalent: KA045AR0*RBC

Silverthin Equivalent: SA045AR0

NSN Equivalent: 3110-00-236-5230

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA045AR0 Specifications
Product Type	Angular Contact
Part Number	RA045AR0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.688
Land Diameter Outer Ring [Lo]	4.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.21
Radial Static Load (lbs.)	1,660
Radial Dynamic Load (lbs.)	637
Thrust Static Load (lbs.)	4,810
Thrust Dynamic Load (lbs.)	1,580
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.1250

Angular Contact

Bearing information

Learn more about RB045AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB045

Kaydon Equivalent: KB045AR0

NSK Equivalent: NBA11407

RBC Equivalent: KB045AR0*RBC

Silverthin Equivalent: SB045AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB045AR0 Specifications
Product Type	Angular Contact
Part Number	RB045AR0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.734
Land Diameter Outer Ring [Lo]	4.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.34
Radial Static Load (lbs.)	2,250
Radial Dynamic Load (lbs.)	917
Thrust Static Load (lbs.)	6,500
Thrust Dynamic Load (lbs.)	2,240
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.2500

Angular Contact

Bearing information

Learn more about RC045AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC045

Kaydon Equivalent: KC045AR0

NSK Equivalent: NBA11409

RBC Equivalent: KC045AR0*RBC

Silverthin Equivalent: SC045AR0

NSN Equivalent: 3110-01-180-5136

NSN Alternative: 3110-01-160-6250 , 3110-00-701-0074

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC045AR0 Specifications
Product Type	Angular Contact
Part Number	RC045AR0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	4.781
Land Diameter Outer Ring [Lo]	4.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.49
Radial Static Load (lbs.)	2,860
Radial Dynamic Load (lbs.)	1,234
Thrust Static Load (lbs.)	8,270
Thrust Dynamic Load (lbs.)	2,990
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

5.5000

Angular Contact

Bearing information

Learn more about RD045AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED045

Kaydon Equivalent: KD045AR0

NSK Equivalent: NBA11412

RBC Equivalent: KD045AR0*RBC

Silverthin Equivalent: SD045AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD045AR0 Specifications
Product Type	Angular Contact
Part Number	RD045AR0
Bore Diameter [b]	4.5000
Outside Diameter [D]	5.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	4.875
Land Diameter Outer Ring [Lo]	5.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.88
Radial Static Load (lbs.)	3,950
Radial Dynamic Load (lbs.)	1,931
Thrust Static Load (lbs.)	11,400
Thrust Dynamic Load (lbs.)	4,570
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,620
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

6.0000

Angular Contact

Bearing information

Learn more about RF045AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF045

Kaydon Equivalent: KF045AR0

NSK Equivalent: NBA11419

RBC Equivalent: KF045AR0*RBC

Silverthin Equivalent: SF045AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF045AR0 Specifications
Product Type	Angular Contact
Part Number	RF045AR0
Bore Diameter [b]	4.5000
Outside Diameter [D]	6.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	5.063
Land Diameter Outer Ring [Lo]	5.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.14
Radial Static Load (lbs.)	7,090
Radial Dynamic Load (lbs.)	3,966
Thrust Static Load (lbs.)	20,460
Thrust Dynamic Load (lbs.)	9,050
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,650
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.5000

6.5000

Angular Contact

Bearing information

Learn more about RG045AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG045

Kaydon Equivalent: KG045AR0

NSK Equivalent: NBA11425

RBC Equivalent: KG045AR0*RBC

Silverthin Equivalent: SG045AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG045AR0 Specifications
Product Type	Angular Contact
Part Number	RG045AR0
Bore Diameter [b]	4.5000
Outside Diameter [D]	6.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.250
Land Diameter Outer Ring [Lo]	5.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	3.95
Radial Static Load (lbs.)	10,430
Radial Dynamic Load (lbs.)	6,562
Thrust Static Load (lbs.)	30,100
Thrust Dynamic Load (lbs.)	14,530
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.2500

Angular Contact

Bearing information

Learn more about RA047AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA047

Kaydon Equivalent: KA047AR0

NSK Equivalent: NBA12006

RBC Equivalent: KA047AR0*RBC

Silverthin Equivalent: SA047AR0

NSN Equivalent: 3110-00-351-6934

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA047AR0 Specifications
Product Type	Angular Contact
Part Number	RA047AR0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.2500
Width [W]	0.2500
Land Diameter Inner Ring [Li]	4.938
Land Diameter Outer Ring [Lo]	5.063
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.22
Radial Static Load (lbs.)	1,750
Radial Dynamic Load (lbs.)	657
Thrust Static Load (lbs.)	5,060
Thrust Dynamic Load (lbs.)	1,640
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,790
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.3750

Angular Contact

Bearing information

Learn more about RB047AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB047

Kaydon Equivalent: KB047AR0

NSK Equivalent: NBA12007

RBC Equivalent: KB047AR0*RBC

Silverthin Equivalent: SB047AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB047AR0 Specifications
Product Type	Angular Contact
Part Number	RB047AR0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.3750
Width [W]	0.3125
Land Diameter Inner Ring [Li]	4.984
Land Diameter Outer Ring [Lo]	5.141
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.35
Radial Static Load (lbs.)	2,390
Radial Dynamic Load (lbs.)	951
Thrust Static Load (lbs.)	6,910
Thrust Dynamic Load (lbs.)	2,340
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.5000

Angular Contact

Bearing information

Learn more about RC047AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC047

Kaydon Equivalent: KC047AR0

NSK Equivalent: NBA12009

RBC Equivalent: KC047AR0*RBC

Silverthin Equivalent: SC047AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC047AR0 Specifications
Product Type	Angular Contact
Part Number	RC047AR0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.5000
Width [W]	0.3750
Land Diameter Inner Ring [Li]	5.031
Land Diameter Outer Ring [Lo]	5.219
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.51
Radial Static Load (lbs.)	3,020
Radial Dynamic Load (lbs.)	1,274
Thrust Static Load (lbs.)	8,720
Thrust Dynamic Load (lbs.)	3,100
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,795
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

5.7500

Angular Contact

Bearing information

Learn more about RD047AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED047

Kaydon Equivalent: KD047AR0

NSK Equivalent: NBA12012

RBC Equivalent: KD047AR0*RBC

Silverthin Equivalent: SD047AR0

NSN Equivalent: 3110-01-294-2266

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD047AR0 Specifications
Product Type	Angular Contact
Part Number	RD047AR0
Bore Diameter [b]	4.7500
Outside Diameter [D]	5.7500
Width [W]	0.5000
Land Diameter Inner Ring [Li]	5.125
Land Diameter Outer Ring [Lo]	5.375
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.93
Radial Static Load (lbs.)	4,150
Radial Dynamic Load (lbs.)	1,986
Thrust Static Load (lbs.)	11,970
Thrust Dynamic Load (lbs.)	4,720
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

6.2500

Angular Contact

Bearing information

Learn more about RF047AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF047

Kaydon Equivalent: KF047AR0

NSK Equivalent: NBA12019

RBC Equivalent: KF047AR0*RBC

Silverthin Equivalent: SF047AR0

NSN Equivalent: 3110-01-660-7290

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF047AR0 Specifications
Product Type	Angular Contact
Part Number	RF047AR0
Bore Diameter [b]	4.7500
Outside Diameter [D]	6.2500
Width [W]	0.7500
Land Diameter Inner Ring [Li]	5.313
Land Diameter Outer Ring [Lo]	5.688
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.26
Radial Static Load (lbs.)	7,330
Radial Dynamic Load (lbs.)	4,034
Thrust Static Load (lbs.)	21,160
Thrust Dynamic Load (lbs.)	9,260
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

4.7500

6.7500

Angular Contact

Bearing information

Learn more about RG047AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG047

Kaydon Equivalent: KG047AR0

NSK Equivalent: NBA12025

RBC Equivalent: KG047AR0*RBC

Silverthin Equivalent: SG047AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG047AR0 Specifications
Product Type	Angular Contact
Part Number	RG047AR0
Bore Diameter [b]	4.7500
Outside Diameter [D]	6.7500
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.500
Land Diameter Outer Ring [Lo]	6.000
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	4.17
Radial Static Load (lbs.)	10,900
Radial Dynamic Load (lbs.)	6,745
Thrust Static Load (lbs.)	31,460
Thrust Dynamic Load (lbs.)	14,970
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,789
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

5.5000

Angular Contact

Bearing information

Learn more about RA050AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA050

Kaydon Equivalent: KA050AR0

NSK Equivalent: NBA12706

RBC Equivalent: KA050AR0*RBC

Silverthin Equivalent: SA050AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA050AR0 Specifications
Product Type	Angular Contact
Part Number	RA050AR0
Bore Diameter [b]	5.0000
Outside Diameter [D]	5.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	5.188
Land Diameter Outer Ring [Lo]	5.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.23
Radial Static Load (lbs.)	1,840
Radial Dynamic Load (lbs.)	676
Thrust Static Load (lbs.)	5,310
Thrust Dynamic Load (lbs.)	1,690
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

5.6250

Angular Contact

Bearing information

Learn more about RB050AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB050

Kaydon Equivalent: KB050AR0

NSK Equivalent: NBA12707

RBC Equivalent: KB050AR0*RBC

Silverthin Equivalent: SB050AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB050AR0 Specifications
Product Type	Angular Contact
Part Number	RB050AR0
Bore Diameter [b]	5.0000
Outside Diameter [D]	5.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	5.234
Land Diameter Outer Ring [Lo]	5.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.37
Radial Static Load (lbs.)	2,500
Radial Dynamic Load (lbs.)	976
Thrust Static Load (lbs.)	7,210
Thrust Dynamic Load (lbs.)	2,410
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

5.7500

Angular Contact

Bearing information

Learn more about RC050AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC050

Kaydon Equivalent: KC050AR0

NSK Equivalent: NBA12709

RBC Equivalent: KC050AR0*RBC

Silverthin Equivalent: SC050AR0

NSN Equivalent: 3110-01-280-4618

NSN Alternative: 3110-01-293-9504

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC050AR0 Specifications
Product Type	Angular Contact
Part Number	RC050AR0
Bore Diameter [b]	5.0000
Outside Diameter [D]	5.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	5.281
Land Diameter Outer Ring [Lo]	5.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.54
Radial Static Load (lbs.)	3,180
Radial Dynamic Load (lbs.)	1,313
Thrust Static Load (lbs.)	9,170
Thrust Dynamic Load (lbs.)	3,200
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,620
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

6.0000

Angular Contact

Bearing information

Learn more about RD050AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED050

Kaydon Equivalent: KD050AR0

NSK Equivalent: NBA12712

RBC Equivalent: KD050AR0*RBC

Silverthin Equivalent: SD050AR0

NSN Equivalent: 3110-01-424-3588

NSN Alternative: 3110-01-151-5177

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD050AR0 Specifications
Product Type	Angular Contact
Part Number	RD050AR0
Bore Diameter [b]	5.0000
Outside Diameter [D]	6.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	5.375
Land Diameter Outer Ring [Lo]	5.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	0.98
Radial Static Load (lbs.)	4,340
Radial Dynamic Load (lbs.)	2,040
Thrust Static Load (lbs.)	12,540
Thrust Dynamic Load (lbs.)	4,870
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

6.5000

Angular Contact

Bearing information

Learn more about RF050AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF050

Kaydon Equivalent: KF050AR0

NSK Equivalent: NBA12719

RBC Equivalent: KF050AR0*RBC

Silverthin Equivalent: SF050AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF050AR0 Specifications
Product Type	Angular Contact
Part Number	RF050AR0
Bore Diameter [b]	5.0000
Outside Diameter [D]	6.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	5.563
Land Diameter Outer Ring [Lo]	5.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.37
Radial Static Load (lbs.)	7,570
Radial Dynamic Load (lbs.)	4,101
Thrust Static Load (lbs.)	21,870
Thrust Dynamic Load (lbs.)	9,460
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,175
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.0000

7.0000

Angular Contact

Bearing information

Learn more about RG050AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG050

Kaydon Equivalent: KG050AR0

NSK Equivalent: NBA12725

RBC Equivalent: KG050AR0*RBC

Silverthin Equivalent: SG050AR0

NSN Alternative: 3110-01-328-6731

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG050AR0 Specifications
Product Type	Angular Contact
Part Number	RG050AR0
Bore Diameter [b]	5.0000
Outside Diameter [D]	7.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	5.750
Land Diameter Outer Ring [Lo]	6.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	4.42
Radial Static Load (lbs.)	11,370
Radial Dynamic Load (lbs.)	6,897
Thrust Static Load (lbs.)	32,830
Thrust Dynamic Load (lbs.)	15,400
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	4,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.0000

Angular Contact

Bearing information

Learn more about RA055AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA055

Kaydon Equivalent: KA055AR0

NSK Equivalent: NBA13906

RBC Equivalent: KA055AR0*RBC

Silverthin Equivalent: SA055AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA055AR0 Specifications
Product Type	Angular Contact
Part Number	RA055AR0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	5.688
Land Diameter Outer Ring [Lo]	5.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.25
Radial Static Load (lbs.)	2,020
Radial Dynamic Load (lbs.)	715
Thrust Static Load (lbs.)	5,820
Thrust Dynamic Load (lbs.)	1,800
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,275
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.1250

Angular Contact

Bearing information

Learn more about RB055AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB055

Kaydon Equivalent: KB055AR0

NSK Equivalent: NBA13907

RBC Equivalent: KB055AR0*RBC

Silverthin Equivalent: SB055AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB055AR0 Specifications
Product Type	Angular Contact
Part Number	RB055AR0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	5.734
Land Diameter Outer Ring [Lo]	5.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.40
Radial Static Load (lbs.)	2,740
Radial Dynamic Load (lbs.)	1,033
Thrust Static Load (lbs.)	7,920
Thrust Dynamic Load (lbs.)	2,560
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,275
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.2500

Angular Contact

Bearing information

Learn more about RC055AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC055

Kaydon Equivalent: KC055AR0

NSK Equivalent: NBA13909

RBC Equivalent: KC055AR0*RBC

Silverthin Equivalent: SC055AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC055AR0 Specifications
Product Type	Angular Contact
Part Number	RC055AR0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	5.781
Land Diameter Outer Ring [Lo]	5.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.58
Radial Static Load (lbs.)	2,830
Radial Dynamic Load (lbs.)	1,274
Thrust Static Load (lbs.)	N/A
Thrust Dynamic Load (lbs.)	N/A
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,300
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

6.5000

Angular Contact

Bearing information

Learn more about RD055AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED055

Kaydon Equivalent: KD055AR0

NSK Equivalent: NBA13912

RBC Equivalent: KD055AR0*RBC

Silverthin Equivalent: SD055AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD055AR0 Specifications
Product Type	Angular Contact
Part Number	RD055AR0
Bore Diameter [b]	5.5000
Outside Diameter [D]	6.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	5.875
Land Diameter Outer Ring [Lo]	6.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.06
Radial Static Load (lbs.)	4,740
Radial Dynamic Load (lbs.)	2,145
Thrust Static Load (lbs.)	13,680
Thrust Dynamic Load (lbs.)	5,160
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

7.0000

Angular Contact

Bearing information

Learn more about RF055AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF055

Kaydon Equivalent: KF055AR0

NSK Equivalent: NBA13919

RBC Equivalent: KF055AR0*RBC

Silverthin Equivalent: SF055AR0

NSN Equivalent: 3110-01-181-2182

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF055AR0 Specifications
Product Type	Angular Contact
Part Number	RF055AR0
Bore Diameter [b]	5.5000
Outside Diameter [D]	7.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	6.063
Land Diameter Outer Ring [Lo]	6.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.59
Radial Static Load (lbs.)	8,310
Radial Dynamic Load (lbs.)	4,319
Thrust Static Load (lbs.)	23,980
Thrust Dynamic Load (lbs.)	10,060
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,775
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

5.5000

7.5000

Angular Contact

Bearing information

Learn more about RG055AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG055

Kaydon Equivalent: KG055AR0

NSK Equivalent: NBA13925

RBC Equivalent: KG055AR0*RBC

Silverthin Equivalent: SG055AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG055AR0 Specifications
Product Type	Angular Contact
Part Number	RG055AR0
Bore Diameter [b]	5.5000
Outside Diameter [D]	7.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	6.250
Land Diameter Outer Ring [Lo]	6.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	4.73
Radial Static Load (lbs.)	12,320
Radial Dynamic Load (lbs.)	7,192
Thrust Static Load (lbs.)	35,570
Thrust Dynamic Load (lbs.)	16,240
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

6.5000

Angular Contact

Bearing information

Learn more about RA060AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA060

Kaydon Equivalent: KA060AR0

NSK Equivalent: NBA15206

RBC Equivalent: KA060AR0*RBC

Silverthin Equivalent: SA060AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA060AR0 Specifications
Product Type	Angular Contact
Part Number	RA060AR0
Bore Diameter [b]	6.0000
Outside Diameter [D]	6.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	6.188
Land Diameter Outer Ring [Lo]	6.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.28
Radial Static Load (lbs.)	2,190
Radial Dynamic Load (lbs.)	752
Thrust Static Load (lbs.)	6,320
Thrust Dynamic Load (lbs.)	1,900
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,950
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

6.6250

Angular Contact

Bearing information

Learn more about RB060AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB060

Kaydon Equivalent: KB060AR0

NSK Equivalent: NBA15207

RBC Equivalent: KB060AR0*RBC

Silverthin Equivalent: SB060AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB060AR0 Specifications
Product Type	Angular Contact
Part Number	RB060AR0
Bore Diameter [b]	6.0000
Outside Diameter [D]	6.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	6.234
Land Diameter Outer Ring [Lo]	6.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.44
Radial Static Load (lbs.)	2,990
Radial Dynamic Load (lbs.)	1,088
Thrust Static Load (lbs.)	8,630
Thrust Dynamic Load (lbs.)	2,710
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

6.7500

Angular Contact

Bearing information

Learn more about RC060AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC060

Kaydon Equivalent: KC060AR0

NSK Equivalent: NBA15209

RBC Equivalent: KC060AR0*RBC

Silverthin Equivalent: SC060AR0

NSN Equivalent: 3110-01-337-7893

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC060AR0 Specifications
Product Type	Angular Contact
Part Number	RC060AR0
Bore Diameter [b]	6.0000
Outside Diameter [D]	6.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	6.281
Land Diameter Outer Ring [Lo]	6.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.64
Radial Static Load (lbs.)	3,750
Radial Dynamic Load (lbs.)	1,448
Thrust Static Load (lbs.)	10,820
Thrust Dynamic Load (lbs.)	3,580
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

7.0000

Angular Contact

Bearing information

Learn more about RD060AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED060

Kaydon Equivalent: KD060AR0

NSK Equivalent: NBA15212

RBC Equivalent: KD060AR0*RBC

Silverthin Equivalent: SD060AR0

NSN Alternative: 3110-01-275-4564 , 3110-01-319-5286

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD060AR0 Specifications
Product Type	Angular Contact
Part Number	RD060AR0
Bore Diameter [b]	6.0000
Outside Diameter [D]	7.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	6.375
Land Diameter Outer Ring [Lo]	6.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.15
Radial Static Load (lbs.)	5,130
Radial Dynamic Load (lbs.)	2,247
Thrust Static Load (lbs.)	14,820
Thrust Dynamic Load (lbs.)	5,440
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

7.5000

Angular Contact

Bearing information

Learn more about RF060AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF060

Kaydon Equivalent: KF060AR0

NSK Equivalent: NBA15219

RBC Equivalent: KF060AR0*RBC

Silverthin Equivalent: SF060AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF060AR0 Specifications
Product Type	Angular Contact
Part Number	RF060AR0
Bore Diameter [b]	6.0000
Outside Diameter [D]	7.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	6.563
Land Diameter Outer Ring [Lo]	6.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.72
Radial Static Load (lbs.)	9,040
Radial Dynamic Load (lbs.)	4,530
Thrust Static Load (lbs.)	26,100
Thrust Dynamic Load (lbs.)	10,650
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,475
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.0000

8.0000

Angular Contact

Bearing information

Learn more about RG060AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG060

Kaydon Equivalent: KG060AR0

NSK Equivalent: NBA15225

RBC Equivalent: KG060AR0*RBC

Silverthin Equivalent: SG060AR0

NSN Equivalent: 3110-01-148-5249

NSN Alternative: 3110-01-055-3940

Inch Series Bearings	RG060AR0 Specifications
Product Type	Angular Contact
Part Number	RG060AR0
Bore Diameter [b]	6.0000
Outside Diameter [D]	8.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	6.750
Land Diameter Outer Ring [Lo]	7.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	5.07
Radial Static Load (lbs.)	13,270
Radial Dynamic Load (lbs.)	7,480
Thrust Static Load (lbs.)	38,300
Thrust Dynamic Load (lbs.)	17,060
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.0000

Angular Contact

Bearing information

Learn more about RA065AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA065

Kaydon Equivalent: KA065AR0

NSK Equivalent: NBA16506

RBC Equivalent: KA065AR0*RBC

Silverthin Equivalent: SA065AR0

NSN Equivalent: 3110-01-463-3518

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA065AR0 Specifications
Product Type	Angular Contact
Part Number	RA065AR0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	6.688
Land Diameter Outer Ring [Lo]	6.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.30
Radial Static Load (lbs.)	2,370
Radial Dynamic Load (lbs.)	788
Thrust Static Load (lbs.)	6,830
Thrust Dynamic Load (lbs.)	2,000
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,625
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.1250

Angular Contact

Bearing information

Learn more about RB065AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB065

Kaydon Equivalent: KB065AR0

NSK Equivalent: NBA16507

RBC Equivalent: KB065AR0*RBC

Silverthin Equivalent: SB065AR0

NSN Alternative: 3110-01-104-3953 , 3110-00-458-4236 , 3110-00-514-6964

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB065AR0 Specifications
Product Type	Angular Contact
Part Number	RB065AR0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	6.734
Land Diameter Outer Ring [Lo]	6.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.47
Radial Static Load (lbs.)	3,200
Radial Dynamic Load (lbs.)	1,132
Thrust Static Load (lbs.)	9,240
Thrust Dynamic Load (lbs.)	2,840
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,775
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.2500

Angular Contact

Bearing information

Learn more about RC065AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC065

Kaydon Equivalent: KC065AR0

NSK Equivalent: NBA16509

RBC Equivalent: KC065AR0*RBC

Silverthin Equivalent: SC065AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC065AR0 Specifications
Product Type	Angular Contact
Part Number	RC065AR0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	6.781
Land Diameter Outer Ring [Lo]	6.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.68
Radial Static Load (lbs.)	4,060
Radial Dynamic Load (lbs.)	1,519
Thrust Static Load (lbs.)	11,720
Thrust Dynamic Load (lbs.)	3,770
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,795
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

7.5000

Angular Contact

Bearing information

Learn more about RD065AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED065

Kaydon Equivalent: KD065AR0

NSK Equivalent: NBA16512

RBC Equivalent: KD065AR0*RBC

Silverthin Equivalent: SD065AR0

NSN Equivalent: 3110-01-288-2416

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD065AR0 Specifications
Product Type	Angular Contact
Part Number	RD065AR0
Bore Diameter [b]	6.5000
Outside Diameter [D]	7.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	6.875
Land Diameter Outer Ring [Lo]	7.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.24
Radial Static Load (lbs.)	5,530
Radial Dynamic Load (lbs.)	2,346
Thrust Static Load (lbs.)	15,960
Thrust Dynamic Load (lbs.)	5,720
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,750
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

8.0000

Angular Contact

Bearing information

Learn more about RF065AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF065

Kaydon Equivalent: KF065AR0

NSK Equivalent: NBA16519

RBC Equivalent: KF065AR0*RBC

Silverthin Equivalent: SF065AR0

NSN Alternative: 3110-01-079-1086

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF065AR0 Specifications
Product Type	Angular Contact
Part Number	RF065AR0
Bore Diameter [b]	6.5000
Outside Diameter [D]	8.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	7.630
Land Diameter Outer Ring [Lo]	7.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	2.94
Radial Static Load (lbs.)	9,770
Radial Dynamic Load (lbs.)	4,734
Thrust Static Load (lbs.)	28,220
Thrust Dynamic Load (lbs.)	11,220
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

6.5000

8.5000

Angular Contact

Bearing information

Learn more about RG065AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG065

Kaydon Equivalent: KG065AR0

NSK Equivalent: NBA16525

RBC Equivalent: KG065AR0*RBC

Silverthin Equivalent: SG065AR0

Inch Series Bearings	RG065AR0 Specifications
Product Type	Angular Contact
Part Number	RG065AR0
Bore Diameter [b]	6.5000
Outside Diameter [D]	8.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	7.250
Land Diameter Outer Ring [Lo]	7.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	5.41
Radial Static Load (lbs.)	14,220
Radial Dynamic Load (lbs.)	7,761
Thrust Static Load (lbs.)	41,040
Thrust Dynamic Load (lbs.)	17,870
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

7.5000

Angular Contact

Bearing information

Learn more about RA070AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA070

Kaydon Equivalent: KA070AR0

NSK Equivalent: NBA17706

RBC Equivalent: KA070AR0*RBC

Silverthin Equivalent: SA070AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA070AR0 Specifications
Product Type	Angular Contact
Part Number	RA070AR0
Bore Diameter [b]	7.0000
Outside Diameter [D]	7.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	7.188
Land Diameter Outer Ring [Lo]	7.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.32
Radial Static Load (lbs.)	2,540
Radial Dynamic Load (lbs.)	823
Thrust Static Load (lbs.)	7,340
Thrust Dynamic Load (lbs.)	2,100
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,300
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

7.6250

Angular Contact

Bearing information

Learn more about RB070AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB070

Kaydon Equivalent: KB070AR0

NSK Equivalent: NBA17707

RBC Equivalent: KB070AR0*RBC

Silverthin Equivalent: SB070AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB070AR0 Specifications
Product Type	Angular Contact
Part Number	RB070AR0
Bore Diameter [b]	7.0000
Outside Diameter [D]	7.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	7.234
Land Diameter Outer Ring [Lo]	7.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.50
Radial Static Load (lbs.)	3,450
Radial Dynamic Load (lbs.)	1,184
Thrust Static Load (lbs.)	9,960
Thrust Dynamic Load (lbs.)	2,980
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

7.7500

Angular Contact

Bearing information

Learn more about RC070AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC070

Kaydon Equivalent: KC070AR0

NSK Equivalent: NBA17709

RBC Equivalent: KC070AR0*RBC

Silverthin Equivalent: SC070AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC070AR0 Specifications
Product Type	Angular Contact
Part Number	RC070AR0
Bore Diameter [b]	7.0000
Outside Diameter [D]	7.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	7.281
Land Diameter Outer Ring [Lo]	7.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.74
Radial Static Load (lbs.)	4,320
Radial Dynamic Load (lbs.)	1,575
Thrust Static Load (lbs.)	12,470
Thrust Dynamic Load (lbs.)	3,930
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,580
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

8.0000

Angular Contact

Bearing information

Learn more about RD070AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED070

Kaydon Equivalent: KD070AR0

NSK Equivalent: NBA17712

RBC Equivalent: KD070AR0*RBC

Silverthin Equivalent: SD070AR0

NSN Equivalent: 3110-01-288-2415

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD070AR0 Specifications
Product Type	Angular Contact
Part Number	RD070AR0
Bore Diameter [b]	7.0000
Outside Diameter [D]	8.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	7.375
Land Diameter Outer Ring [Lo]	7.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.33
Radial Static Load (lbs.)	5,920
Radial Dynamic Load (lbs.)	2,442
Thrust Static Load (lbs.)	17,100
Thrust Dynamic Load (lbs.)	5,990
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,550
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

8.5000

Angular Contact

Bearing information

Learn more about RF070AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF070

Kaydon Equivalent: KF070AR0

NSK Equivalent: NBA17719

RBC Equivalent: KF070AR0*RBC

Silverthin Equivalent: SF070AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF070AR0 Specifications
Product Type	Angular Contact
Part Number	RF070AR0
Bore Diameter [b]	7.0000
Outside Diameter [D]	8.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	7.563
Land Diameter Outer Ring [Lo]	7.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	3.16
Radial Static Load (lbs.)	10,510
Radial Dynamic Load (lbs.)	4,932
Thrust Static Load (lbs.)	30,330
Thrust Dynamic Load (lbs.)	11,770
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.0000

9.0000

Angular Contact

Bearing information

Learn more about RG070AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG070

Kaydon Equivalent: KG070AR0

NSK Equivalent: NBA17725

RBC Equivalent: KG070AR0*RBC

Silverthin Equivalent: SG070AR0

Inch Series Bearings	RG070AR0 Specifications
Product Type	Angular Contact
Part Number	RG070AR0
Bore Diameter [b]	7.0000
Outside Diameter [D]	9.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	7.750
Land Diameter Outer Ring [Lo]	8.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	5.87
Radial Static Load (lbs.)	15,160
Radial Dynamic Load (lbs.)	8,035
Thrust Static Load (lbs.)	43,780
Thrust Dynamic Load (lbs.)	18,650
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	3,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.0000

Angular Contact

Bearing information

Learn more about RA075AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA075

Kaydon Equivalent: KA075AR0

RBC Equivalent: KA075AR0*RBC

Silverthin Equivalent: SA075AR0

NSN Equivalent: 3110-01-055-2047

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA075AR0 Specifications
Product Type	Angular Contact
Part Number	RA075AR0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.0000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	7.688
Land Diameter Outer Ring [Lo]	7.813
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.34
Radial Static Load (lbs.)	2,720
Radial Dynamic Load (lbs.)	857
Thrust Static Load (lbs.)	7,840
Thrust Dynamic Load (lbs.)	2,190
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.1250

Angular Contact

Bearing information

Learn more about RB075AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB075

Kaydon Equivalent: KB075AR0

RBC Equivalent: KB075AR0*RBC

Silverthin Equivalent: SB075AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB075AR0 Specifications
Product Type	Angular Contact
Part Number	RB075AR0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.1250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	7.734
Land Diameter Outer Ring [Lo]	7.891
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.54
Radial Static Load (lbs.)	3,700
Radial Dynamic Load (lbs.)	1,235
Thrust Static Load (lbs.)	10,670
Thrust Dynamic Load (lbs.)	3,120
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.2500

Angular Contact

Bearing information

Learn more about RC075AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC075

Kaydon Equivalent: KC075AR0

RBC Equivalent: KC075AR0*RBC

Silverthin Equivalent: SC075AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC075AR0 Specifications
Product Type	Angular Contact
Part Number	RC075AR0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.2500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	7.781
Land Diameter Outer Ring [Lo]	7.969
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.78
Radial Static Load (lbs.)	4,630
Radial Dynamic Load (lbs.)	1,642
Thrust Static Load (lbs.)	13,380
Thrust Dynamic Load (lbs.)	4,120
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.5000

Angular Contact

Bearing information

Learn more about RD075AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED075

Kaydon Equivalent: KD075AR0

RBC Equivalent: KD075AR0*RBC

Silverthin Equivalent: SD075AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD075AR0 Specifications
Product Type	Angular Contact
Part Number	RD075AR0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	7.875
Land Diameter Outer Ring [Lo]	8.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.42
Radial Static Load (lbs.)	6,320
Radial Dynamic Load (lbs.)	2,536
Thrust Static Load (lbs.)	18,240
Thrust Dynamic Load (lbs.)	6,250
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

8.5000

Angular Contact

Bearing information

Learn more about RD075AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD075AR0 Specifications
Product Type	Angular Contact
Part Number	RD075AR0
Bore Diameter [b]	7.5000
Outside Diameter [D]	8.5000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	7.875
Land Diameter Outer Ring [Lo]	8.125
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.42
Radial Static Load (lbs.)	6,320
Radial Dynamic Load (lbs.)	2,536
Thrust Static Load (lbs.)	18,240
Thrust Dynamic Load (lbs.)	6,250
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,400
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

9.0000

Angular Contact

Bearing information

Learn more about RF075AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF075

Kaydon Equivalent: KF075AR0

RBC Equivalent: KF075AR0*RBC

Silverthin Equivalent: SF075AR0

NSN Equivalent: 3110-01-091-3955

NSN Alternative: 3110-01-079-1087 , 3110-01-347-2489

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF075AR0 Specifications
Product Type	Angular Contact
Part Number	RF075AR0
Bore Diameter [b]	7.5000
Outside Diameter [D]	9.0000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	8.063
Land Diameter Outer Ring [Lo]	8.438
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	3.39
Radial Static Load (lbs.)	11,000
Radial Dynamic Load (lbs.)	5,052
Thrust Static Load (lbs.)	31,740
Thrust Dynamic Load (lbs.)	12,130
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

7.5000

9.5000

Angular Contact

Bearing information

Learn more about RG075AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG075

Kaydon Equivalent: KG075AR0

RBC Equivalent: KG075AR0*RBC

Silverthin Equivalent: SG075AR0

NSN Alternative: 3110-01-277-4432

Inch Series Bearings	RG075AR0 Specifications
Product Type	Angular Contact
Part Number	RG075AR0
Bore Diameter [b]	7.5000
Outside Diameter [D]	9.5000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	8.250
Land Diameter Outer Ring [Lo]	8.750
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	6.20
Radial Static Load (lbs.)	16,110
Radial Dynamic Load (lbs.)	8,303
Thrust Static Load (lbs.)	46,510
Thrust Dynamic Load (lbs.)	19,420
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

8.5000

Angular Contact

Bearing information

Learn more about RA080AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA080

Kaydon Equivalent: KA080AR0

RBC Equivalent: KA080AR0*RBC

Silverthin Equivalent: SA080AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA080AR0 Specifications
Product Type	Angular Contact
Part Number	RA080AR0
Bore Diameter [b]	8.0000
Outside Diameter [D]	8.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	8.188
Land Diameter Outer Ring [Lo]	8.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.36
Radial Static Load (lbs.)	2,890
Radial Dynamic Load (lbs.)	890
Thrust Static Load (lbs.)	8,350
Thrust Dynamic Load (lbs.)	2,280
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,875
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

8.6250

Angular Contact

Bearing information

Learn more about RB080AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB080

Kaydon Equivalent: KB080AR0

RBC Equivalent: KB080AR0*RBC

Silverthin Equivalent: SB080AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB080AR0 Specifications
Product Type	Angular Contact
Part Number	RB080AR0
Bore Diameter [b]	8.0000
Outside Diameter [D]	8.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	8.234
Land Diameter Outer Ring [Lo]	8.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.57
Radial Static Load (lbs.)	3,940
Radial Dynamic Load (lbs.)	1,284
Thrust Static Load (lbs.)	11,380
Thrust Dynamic Load (lbs.)	3,260
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,875
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

8.7500

Angular Contact

Bearing information

Learn more about RC080AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC080

Kaydon Equivalent: KC080AR0

RBC Equivalent: KC080AR0*RBC

Silverthin Equivalent: SC080AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC080AR0 Specifications
Product Type	Angular Contact
Part Number	RC080AR0
Bore Diameter [b]	8.0000
Outside Diameter [D]	8.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	8.281
Land Diameter Outer Ring [Lo]	8.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.84
Radial Static Load (lbs.)	4,950
Radial Dynamic Load (lbs.)	1,708
Thrust Static Load (lbs.)	14,280
Thrust Dynamic Load (lbs.)	4,300
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,260
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

9.0000

Angular Contact

Bearing information

Learn more about RD080AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED080

Kaydon Equivalent: KD080AR0

RBC Equivalent: KD080AR0*RBC

Silverthin Equivalent: SD080AR0

NSN Equivalent: 3110-00-844-5155

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD080AR0 Specifications
Product Type	Angular Contact
Part Number	RD080AR0
Bore Diameter [b]	8.0000
Outside Diameter [D]	9.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	8.375
Land Diameter Outer Ring [Lo]	8.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.52
Radial Static Load (lbs.)	6,710
Radial Dynamic Load (lbs.)	2,627
Thrust Static Load (lbs.)	19,380
Thrust Dynamic Load (lbs.)	6,510
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

9.5000

Angular Contact

Bearing information

Learn more about RF080AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF080

Kaydon Equivalent: KF080AR0

RBC Equivalent: KF080AR0*RBC

Silverthin Equivalent: SF080AR0

NSN Alternative: 3110-00-321-9509

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF080AR0 Specifications
Product Type	Angular Contact
Part Number	RF080AR0
Bore Diameter [b]	8.0000
Outside Diameter [D]	9.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	8.563
Land Diameter Outer Ring [Lo]	8.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	3.61
Radial Static Load (lbs.)	11,730
Radial Dynamic Load (lbs.)	5,242
Thrust Static Load (lbs.)	33,860
Thrust Dynamic Load (lbs.)	12,670
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

8.0000

10.0000

Angular Contact

Bearing information

Learn more about RG080AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG080

Kaydon Equivalent: KG080AR0

RBC Equivalent: KG080AR0*RBC

Silverthin Equivalent: SG080AR0

NSN Equivalent: 3120-01-319-5703

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG080AR0 Specifications
Product Type	Angular Contact
Part Number	RG080AR0
Bore Diameter [b]	8.0000
Outside Diameter [D]	10.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	8.750
Land Diameter Outer Ring [Lo]	9.250
Housing Fillet [f1]	9.500
Ball Diameter	0.080
Weight (lbs.)	36
Radial Static Load (lbs.)	6.54
Radial Dynamic Load (lbs.)	17,060
Thrust Static Load (lbs.)	8,566
Thrust Dynamic Load (lbs.)	49,250
Moment Static Load (lbs. -in.)	20,180
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	N/A
Speed (RPM) Axial	2,600
Material	52100 Bearing Steel

9.0000

9.5000

Angular Contact

Bearing information

Learn more about RA090AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA090

Kaydon Equivalent: KA090AR0

RBC Equivalent: KA090AR0*RBC

Silverthin Equivalent: SA090AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA090AR0 Specifications
Product Type	Angular Contact
Part Number	RA090AR0
Bore Diameter [b]	9.0000
Outside Diameter [D]	9.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	9.188
Land Diameter Outer Ring [Lo]	9.319
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.41
Radial Static Load (lbs.)	3,240
Radial Dynamic Load (lbs.)	954
Thrust Static Load (lbs.)	9,360
Thrust Dynamic Load (lbs.)	2,470
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,325
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

9.6250

Angular Contact

Bearing information

Learn more about RB090AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB090

Kaydon Equivalent: KB090AR0

RBC Equivalent: KB090AR0*RBC

Silverthin Equivalent: SB090AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB090AR0 Specifications
Product Type	Angular Contact
Part Number	RB090AR0
Bore Diameter [b]	9.0000
Outside Diameter [D]	9.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	9.234
Land Diameter Outer Ring [Lo]	9.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.64
Radial Static Load (lbs.)	4,400
Radial Dynamic Load (lbs.)	1,370
Thrust Static Load (lbs.)	12,700
Thrust Dynamic Load (lbs.)	3,510
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,725
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

9.7500

Angular Contact

Bearing information

Learn more about RC090AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC090

Kaydon Equivalent: KC090AR0

RBC Equivalent: KC090AR0*RBC

Silverthin Equivalent: SC090AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC090AR0 Specifications
Product Type	Angular Contact
Part Number	RC090AR0
Bore Diameter [b]	9.0000
Outside Diameter [D]	9.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	9.281
Land Diameter Outer Ring [Lo]	9.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	0.98
Radial Static Load (lbs.)	5,520
Radial Dynamic Load (lbs.)	1,822
Thrust Static Load (lbs.)	15,930
Thrust Dynamic Load (lbs.)	4,630
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,675
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

10.0000

Angular Contact

Bearing information

Learn more about RD090AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED090

Kaydon Equivalent: KD090AR0

RBC Equivalent: KD090AR0*RBC

Silverthin Equivalent: SD090AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD090AR0 Specifications
Product Type	Angular Contact
Part Number	RD090AR0
Bore Diameter [b]	9.0000
Outside Diameter [D]	10.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	9.375
Land Diameter Outer Ring [Lo]	9.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.69
Radial Static Load (lbs.)	7,500
Radial Dynamic Load (lbs.)	2,803
Thrust Static Load (lbs.)	21,660
Thrust Dynamic Load (lbs.)	7,010
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

10.5000

Angular Contact

Bearing information

Learn more about RF090AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF090

Kaydon Equivalent: KF090AR0

RBC Equivalent: KF090AR0*RBC

Silverthin Equivalent: SF090AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF090AR0 Specifications
Product Type	Angular Contact
Part Number	RF090AR0
Bore Diameter [b]	9.0000
Outside Diameter [D]	10.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	9.563
Land Diameter Outer Ring [Lo]	9.938
Housing Fillet [f1]	10.125
Ball Diameter	0.080
Weight (lbs.)	54
Radial Static Load (lbs.)	3.95
Radial Dynamic Load (lbs.)	13,190
Thrust Static Load (lbs.)	5,608
Thrust Dynamic Load (lbs.)	38,090
Moment Static Load (lbs. -in.)	13,700
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

9.0000

11.0000

Angular Contact

Bearing information

Learn more about RG090AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG090

Kaydon Equivalent: KG090AR0

RBC Equivalent: KG090AR0*RBC

Silverthin Equivalent: SG090AR0

Download Print PDF

Inch Series Bearings	RG090AR0 Specifications
Product Type	Angular Contact
Part Number	RG090AR0
Bore Diameter [b]	9.0000
Outside Diameter [D]	11.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	9.750
Land Diameter Outer Ring [Lo]	10.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	7.22
Radial Static Load (lbs.)	18,960
Radial Dynamic Load (lbs.)	9,073
Thrust Static Load (lbs.)	54,720
Thrust Dynamic Load (lbs.)	21,640
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	2,300
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

10.5000

Angular Contact

Bearing information

Learn more about RA100AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA100

Kaydon Equivalent: KA100AR0

RBC Equivalent: KA100AR0*RBC

Silverthin Equivalent: SA100AR0

NSN Alternative: 3110-00-508-5517 , 3110-01-161-4735

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA100AR0 Specifications
Product Type	Angular Contact
Part Number	RA100AR0
Bore Diameter [b]	10.0000
Outside Diameter [D]	10.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	10.188
Land Diameter Outer Ring [Lo]	10.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.45
Radial Static Load (lbs.)	3,590
Radial Dynamic Load (lbs.)	1,014
Thrust Static Load (lbs.)	10,370
Thrust Dynamic Load (lbs.)	2,640
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

10.6250

Angular Contact

Bearing information

Learn more about RB100AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB100

Kaydon Equivalent: KB100AR0

RBC Equivalent: KB100AR0*RBC

Silverthin Equivalent: SB100AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB100AR0 Specifications
Product Type	Angular Contact
Part Number	RB100AR0
Bore Diameter [b]	10.0000
Outside Diameter [D]	10.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	10.234
Land Diameter Outer Ring [Lo]	10.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.71
Radial Static Load (lbs.)	4,890
Radial Dynamic Load (lbs.)	1,461
Thrust Static Load (lbs.)	14,120
Thrust Dynamic Load (lbs.)	3,760
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

10.7500

Angular Contact

Bearing information

Learn more about RC100AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC100

Kaydon Equivalent: KC100AR0

RBC Equivalent: KC100AR0*RBC

Silverthin Equivalent: SC100AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC100AR0 Specifications
Product Type	Angular Contact
Part Number	RC100AR0
Bore Diameter [b]	10.0000
Outside Diameter [D]	10.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	10.281
Land Diameter Outer Ring [Lo]	10.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	1.04
Radial Static Load (lbs.)	6,140
Radial Dynamic Load (lbs.)	1,942
Thrust Static Load (lbs.)	17,730
Thrust Dynamic Load (lbs.)	4,970
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

11.0000

Angular Contact

Bearing information

Learn more about RD100AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED100

Kaydon Equivalent: KD100AR0

RBC Equivalent: KD100AR0*RBC

Silverthin Equivalent: SD100AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD100AR0 Specifications
Product Type	Angular Contact
Part Number	RD100AR0
Bore Diameter [b]	10.0000
Outside Diameter [D]	11.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	10.375
Land Diameter Outer Ring [Lo]	10.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	1.87
Radial Static Load (lbs.)	8,290
Radial Dynamic Load (lbs.)	2,972
Thrust Static Load (lbs.)	23,940
Thrust Dynamic Load (lbs.)	7,500
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

11.5000

Angular Contact

Bearing information

Learn more about RF100AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF100

Kaydon Equivalent: KF100AR0

RBC Equivalent: KF100AR0*RBC

Silverthin Equivalent: SF100AR0

NSN Alternative: 3110-01-073-3710

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF100AR0 Specifications
Product Type	Angular Contact
Part Number	RF100AR0
Bore Diameter [b]	10.0000
Outside Diameter [D]	11.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	10.563
Land Diameter Outer Ring [Lo]	10.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	4.40
Radial Static Load (lbs.)	14,420
Radial Dynamic Load (lbs.)	5,890
Thrust Static Load (lbs.)	41,620
Thrust Dynamic Load (lbs.)	14,530
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

10.0000

12.0000

Angular Contact

Bearing information

Learn more about RG100AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG100

Kaydon Equivalent: KG100AR0

RBC Equivalent: KG100AR0*RBC

Silverthin Equivalent: SG100AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG100AR0 Specifications
Product Type	Angular Contact
Part Number	RG100AR0
Bore Diameter [b]	10.0000
Outside Diameter [D]	12.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	10.750
Land Diameter Outer Ring [Lo]	11.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	8.00
Radial Static Load (lbs.)	20,850
Radial Dynamic Load (lbs.)	9,561
Thrust Static Load (lbs.)	60,190
Thrust Dynamic Load (lbs.)	23,060
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,800
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

11.5000

Angular Contact

Bearing information

Learn more about RA110AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA110

Kaydon Equivalent: KA110AR0

RBC Equivalent: KA110AR0*RBC

Silverthin Equivalent: SA110AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA110AR0 Specifications
Product Type	Angular Contact
Part Number	RA110AR0
Bore Diameter [b]	11.0000
Outside Diameter [D]	11.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	11.188
Land Diameter Outer Ring [Lo]	11.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.50
Radial Static Load (lbs.)	3,940
Radial Dynamic Load (lbs.)	1,072
Thrust Static Load (lbs.)	11,380
Thrust Dynamic Load (lbs.)	2,810
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,100
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

11.6250

Angular Contact

Bearing information

Learn more about RB110AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB110

Kaydon Equivalent: KB110AR0

RBC Equivalent: KB110AR0*RBC

Silverthin Equivalent: SB110AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB110AR0 Specifications
Product Type	Angular Contact
Part Number	RB110AR0
Bore Diameter [b]	11.0000
Outside Diameter [D]	11.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	11.234
Land Diameter Outer Ring [Lo]	11.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.78
Radial Static Load (lbs.)	5,350
Radial Dynamic Load (lbs.)	1,540
Thrust Static Load (lbs.)	15,440
Thrust Dynamic Load (lbs.)	4,000
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,150
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

11.7500

Angular Contact

Bearing information

Learn more about RC110AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC110

Kaydon Equivalent: KC110AR0

RBC Equivalent: KC110AR0*RBC

Silverthin Equivalent: SC110AR0

NSN Equivalent: 3110-00-232-6320

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC110AR0 Specifications
Product Type	Angular Contact
Part Number	RC110AR0
Bore Diameter [b]	11.0000
Outside Diameter [D]	11.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	11.281
Land Diameter Outer Ring [Lo]	11.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	1.14
Radial Static Load (lbs.)	6,720
Radial Dynamic Load (lbs.)	2,047
Thrust Static Load (lbs.)	19,390
Thrust Dynamic Load (lbs.)	5,280
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,370
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

12.0000

Angular Contact

Bearing information

Learn more about RD110AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED110

Kaydon Equivalent: KD110AR0

RBC Equivalent: KD110AR0*RBC

Silverthin Equivalent: SD110AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD110AR0 Specifications
Product Type	Angular Contact
Part Number	RD110AR0
Bore Diameter [b]	11.0000
Outside Diameter [D]	12.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	11.375
Land Diameter Outer Ring [Lo]	11.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	2.05
Radial Static Load (lbs.)	9,080
Radial Dynamic Load (lbs.)	3,133
Thrust Static Load (lbs.)	26,220
Thrust Dynamic Load (lbs.)	7,960
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,360
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

12.5000

Angular Contact

Bearing information

Learn more about RF110AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF110

Kaydon Equivalent: KF110AR0

RBC Equivalent: KF110AR0*RBC

Silverthin Equivalent: SF110AR0

NSN Alternative: 3110-01-057-0470

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF110AR0 Specifications
Product Type	Angular Contact
Part Number	RF110AR0
Bore Diameter [b]	11.0000
Outside Diameter [D]	12.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	11.563
Land Diameter Outer Ring [Lo]	11.938
Housing Fillet [f1]	12.125
Ball Diameter	0.080
Weight (lbs.)	65
Radial Static Load (lbs.)	4.75
Radial Dynamic Load (lbs.)	15,880
Thrust Static Load (lbs.)	6,227
Thrust Dynamic Load (lbs.)	45,850
Moment Static Load (lbs. -in.)	15,500
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

11.0000

13.0000

Angular Contact

Bearing information

Learn more about RG110AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG110

Kaydon Equivalent: KG110AR0

RBC Equivalent: KG110AR0*RBC

Silverthin Equivalent: SG110AR0

Inch Series Bearings	RG110AR0 Specifications
Product Type	Angular Contact
Part Number	RG110AR0
Bore Diameter [b]	11.0000
Outside Diameter [D]	13.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	11.750
Land Diameter Outer Ring [Lo]	12.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	8.68
Radial Static Load (lbs.)	22,750
Radial Dynamic Load (lbs.)	10,027
Thrust Static Load (lbs.)	65,660
Thrust Dynamic Load (lbs.)	24,400
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,600
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

12.5000

Angular Contact

Bearing information

Learn more about RA120AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEA120

Kaydon Equivalent: KA120AR0

RBC Equivalent: KA120AR0*RBC

Silverthin Equivalent: SA120AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RA120AR0 Specifications
Product Type	Angular Contact
Part Number	RA120AR0
Bore Diameter [b]	12.0000
Outside Diameter [D]	12.5000
Width [W]	0.2500
Land Diameter Inner Ring [Li]	12.188
Land Diameter Outer Ring [Lo]	12.313
Housing Fillet [f1]	0.025
Ball Diameter	1/8
Weight (lbs.)	0.54
Radial Static Load (lbs.)	4,290
Radial Dynamic Load (lbs.)	1,128
Thrust Static Load (lbs.)	12,390
Thrust Dynamic Load (lbs.)	2,970
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

12.6250

Angular Contact

Bearing information

Learn more about RB120AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEB120

Kaydon Equivalent: KB120AR0

RBC Equivalent: KB120AR0*RBC

Silverthin Equivalent: SB120AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RB120AR0 Specifications
Product Type	Angular Contact
Part Number	RB120AR0
Bore Diameter [b]	12.0000
Outside Diameter [D]	12.6250
Width [W]	0.3125
Land Diameter Inner Ring [Li]	12.234
Land Diameter Outer Ring [Lo]	12.391
Housing Fillet [f1]	0.040
Ball Diameter	5/32
Weight (lbs.)	0.85
Radial Static Load (lbs.)	5,840
Radial Dynamic Load (lbs.)	1,623
Thrust Static Load (lbs.)	16,860
Thrust Dynamic Load (lbs.)	4,240
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

12.7500

Angular Contact

Bearing information

Learn more about RC120AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC120

Kaydon Equivalent: KC120AR0

RBC Equivalent: KC120AR0*RBC

Silverthin Equivalent: SC120AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC120AR0 Specifications
Product Type	Angular Contact
Part Number	RC120AR0
Bore Diameter [b]	12.0000
Outside Diameter [D]	12.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	12.281
Land Diameter Outer Ring [Lo]	12.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	1.23
Radial Static Load (lbs.)	7,290
Radial Dynamic Load (lbs.)	2,147
Thrust Static Load (lbs.)	21,040
Thrust Dynamic Load (lbs.)	5,570
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

13.0000

Angular Contact

Bearing information

Learn more about RD120AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED120

Kaydon Equivalent: KD120AR0

RBC Equivalent: KD120AR0*RBC

Silverthin Equivalent: SD120AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD120AR0 Specifications
Product Type	Angular Contact
Part Number	RD120AR0
Bore Diameter [b]	12.0000
Outside Diameter [D]	13.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	12.375
Land Diameter Outer Ring [Lo]	12.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	2.23
Radial Static Load (lbs.)	9,870
Radial Dynamic Load (lbs.)	3,288
Thrust Static Load (lbs.)	28,500
Thrust Dynamic Load (lbs.)	8,420
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,250
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

13.5000

Angular Contact

Bearing information

Learn more about RF120AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF120

Kaydon Equivalent: KF120AR0

RBC Equivalent: KF120AR0*RBC

Silverthin Equivalent: SF120AR0

NSN Alternative: 3110-01-104-3954

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF120AR0 Specifications
Product Type	Angular Contact
Part Number	RF120AR0
Bore Diameter [b]	12.0000
Outside Diameter [D]	13.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	12.563
Land Diameter Outer Ring [Lo]	12.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	5.20
Radial Static Load (lbs.)	17,100
Radial Dynamic Load (lbs.)	6,487
Thrust Static Load (lbs.)	49,380
Thrust Dynamic Load (lbs.)	16,290
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

12.0000

14.0000

Angular Contact

Bearing information

Learn more about RG120AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG120

Kaydon Equivalent: KG120AR0

RBC Equivalent: KG120AR0*RBC

Silverthin Equivalent: SG120AR0

Inch Series Bearings	RG120AR0 Specifications
Product Type	Angular Contact
Part Number	RG120AR0
Bore Diameter [b]	12.0000
Outside Diameter [D]	14.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	12.750
Land Diameter Outer Ring [Lo]	13.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	9.47
Radial Static Load (lbs.)	24,640
Radial Dynamic Load (lbs.)	10,481
Thrust Static Load (lbs.)	71,140
Thrust Dynamic Load (lbs.)	25,780
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,500
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

14.0000

14.7500

Angular Contact

Bearing information

Learn more about RC140AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEC140

Kaydon Equivalent: KC140AR0

RBC Equivalent: KC140AR0*RBC

Silverthin Equivalent: SC140AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RC140AR0 Specifications
Product Type	Angular Contact
Part Number	RC140AR0
Bore Diameter [b]	14.0000
Outside Diameter [D]	14.7500
Width [W]	0.3750
Land Diameter Inner Ring [Li]	14.281
Land Diameter Outer Ring [Lo]	14.469
Housing Fillet [f1]	0.040
Ball Diameter	3/16
Weight (lbs.)	1.43
Radial Static Load (lbs.)	8,490
Radial Dynamic Load (lbs.)	2,347
Thrust Static Load (lbs.)	24,500
Thrust Dynamic Load (lbs.)	6,170
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	857
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

14.0000

15.0000

Angular Contact

Bearing information

Learn more about RD140AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED140

Kaydon Equivalent: KD140AR0

RBC Equivalent: KD140AR0*RBC

Silverthin Equivalent: SD140AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD140AR0 Specifications
Product Type	Angular Contact
Part Number	RD140AR0
Bore Diameter [b]	14.0000
Outside Diameter [D]	15.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	14.375
Land Diameter Outer Ring [Lo]	14.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	2.57
Radial Static Load (lbs.)	11,450
Radial Dynamic Load (lbs.)	3,582
Thrust Static Load (lbs.)	33,060
Thrust Dynamic Load (lbs.)	9,290
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,070
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

14.0000

15.5000

Angular Contact

Bearing information

Learn more about RF140AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF140

Kaydon Equivalent: KF140AR0

RBC Equivalent: KF140AR0*RBC

Silverthin Equivalent: SF140AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF140AR0 Specifications
Product Type	Angular Contact
Part Number	RF140AR0
Bore Diameter [b]	14.0000
Outside Diameter [D]	15.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	14.563
Land Diameter Outer Ring [Lo]	14.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	5.76
Radial Static Load (lbs.)	19,790
Radial Dynamic Load (lbs.)	7,043
Thrust Static Load (lbs.)	57,140
Thrust Dynamic Load (lbs.)	17,950
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,285
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

14.0000

16.0000

Angular Contact

Bearing information

Learn more about RG140AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG140

Kaydon Equivalent: KG140AR0

RBC Equivalent: KG140AR0*RBC

Silverthin Equivalent: SG140AR0

Download Print PDF

Inch Series Bearings	RG140AR0 Specifications
Product Type	Angular Contact
Part Number	RG140AR0
Bore Diameter [b]	14.0000
Outside Diameter [D]	16.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	14.750
Land Diameter Outer Ring [Lo]	15.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	10.90
Radial Static Load (lbs.)	28,430
Radial Dynamic Load (lbs.)	11,338
Thrust Static Load (lbs.)	82,080
Thrust Dynamic Load (lbs.)	28,360
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,200
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

16.0000

17.0000

Angular Contact

Bearing information

Learn more about RD160AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED160

Kaydon Equivalent: KD160AR0

RBC Equivalent: KD160AR0*RBC

Silverthin Equivalent: SD160AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD160AR0 Specifications
Product Type	Angular Contact
Part Number	RD160AR0
Bore Diameter [b]	16.0000
Outside Diameter [D]	17.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	16.375
Land Diameter Outer Ring [Lo]	16.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	2.93
Radial Static Load (lbs.)	13,030
Radial Dynamic Load (lbs.)	3,856
Thrust Static Load (lbs.)	37,620
Thrust Dynamic Load (lbs.)	10,130
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	750
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

16.0000

17.5000

Angular Contact

Bearing information

Learn more about RF160AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF160

Kaydon Equivalent: KF160AR0

RBC Equivalent: KF160AR0*RBC

Silverthin Equivalent: SF160AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF160AR0 Specifications
Product Type	Angular Contact
Part Number	RF160AR0
Bore Diameter [b]	16.0000
Outside Diameter [D]	17.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	16.563
Land Diameter Outer Ring [Lo]	16.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	6.78
Radial Static Load (lbs.)	22,480
Radial Dynamic Load (lbs.)	7,563
Thrust Static Load (lbs.)	64,890
Thrust Dynamic Load (lbs.)	19,540
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	937
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

16.0000

18.0000

Angular Contact

Bearing information

Learn more about RG160AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG160

Kaydon Equivalent: KG160AR0

RBC Equivalent: KG160AR0*RBC

Silverthin Equivalent: SG160AR0

NSN Alternative: 3110-01-112-1795 , 3110-01-657-1197

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG160AR0 Specifications
Product Type	Angular Contact
Part Number	RG160AR0
Bore Diameter [b]	16.0000
Outside Diameter [D]	18.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	16.750
Land Diameter Outer Ring [Lo]	17.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	12.40
Radial Static Load (lbs.)	32,220
Radial Dynamic Load (lbs.)	12,142
Thrust Static Load (lbs.)	93,020
Thrust Dynamic Load (lbs.)	30,830
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,100
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

18.0000

19.0000

Angular Contact

Bearing information

Learn more about RD180AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSED180

Kaydon Equivalent: KD180AR0

RBC Equivalent: KD180AR0*RBC

Silverthin Equivalent: SD180AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RD180AR0 Specifications
Product Type	Angular Contact
Part Number	RD180AR0
Bore Diameter [b]	18.0000
Outside Diameter [D]	19.0000
Width [W]	0.5000
Land Diameter Inner Ring [Li]	18.375
Land Diameter Outer Ring [Lo]	18.625
Housing Fillet [f1]	0.060
Ball Diameter	1/4
Weight (lbs.)	3.29
Radial Static Load (lbs.)	14,610
Radial Dynamic Load (lbs.)	4,113
Thrust Static Load (lbs.)	42,180
Thrust Dynamic Load (lbs.)	10,930
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	650
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

18.0000

19.5000

Angular Contact

Bearing information

Learn more about RF180AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEF180

Kaydon Equivalent: KF180AR0

RBC Equivalent: KF180AR0*RBC

Silverthin Equivalent: SF180AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RF180AR0 Specifications
Product Type	Angular Contact
Part Number	RF180AR0
Bore Diameter [b]	18.0000
Outside Diameter [D]	19.5000
Width [W]	0.7500
Land Diameter Inner Ring [Li]	18.563
Land Diameter Outer Ring [Lo]	18.938
Housing Fillet [f1]	0.080
Ball Diameter	3/8
Weight (lbs.)	7.67
Radial Static Load (lbs.)	25,410
Radial Dynamic Load (lbs.)	8,103
Thrust Static Load (lbs.)	73,360
Thrust Dynamic Load (lbs.)	21,210
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	833
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

18.0000

20.0000

Angular Contact

Bearing information

Learn more about RG180AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG180

Kaydon Equivalent: KG180AR0

RBC Equivalent: KG180AR0*RBC

Silverthin Equivalent: SG180AR0

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG180AR0 Specifications
Product Type	Angular Contact
Part Number	RG180AR0
Bore Diameter [b]	18.0000
Outside Diameter [D]	20.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	18.750
Land Diameter Outer Ring [Lo]	19.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	13.80
Radial Static Load (lbs.)	36,020
Radial Dynamic Load (lbs.)	12,898
Thrust Static Load (lbs.)	104,000
Thrust Dynamic Load (lbs.)	33,200
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	1,000
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

20.0000

22.0000

Angular Contact

Bearing information

Learn more about RG200AR0 Inch Series Bearings with the part specifications here to decide if it is the ideal ball bearing for your application. SSB is a USA manufactured bearing of high quality products. When you are ready to purchase, please contact us. Find the quality bearings you need for your design applications at SSB.

INA Equivalent: CSEG200

Kaydon Equivalent: KG200AR0

RBC Equivalent: KG200AR0*RBC

Silverthin Equivalent: SG200AR0

NSN Equivalent: 3110-010-083-5460

NSN Alternative: 3110-01-111-4591 , 3110-01-656-7729 , 3110-00-890-8004

Download IGES CAD Drawing

Download Print PDF

Inch Series Bearings	RG200AR0 Specifications
Product Type	Angular Contact
Part Number	RG200AR0
Bore Diameter [b]	20.0000
Outside Diameter [D]	22.0000
Width [W]	1.0000
Land Diameter Inner Ring [Li]	20.750
Land Diameter Outer Ring [Lo]	21.250
Housing Fillet [f1]	0.080
Ball Diameter	1/2
Weight (lbs.)	15.20
Radial Static Load (lbs.)	39,810
Radial Dynamic Load (lbs.)	13,612
Thrust Static Load (lbs.)	114,900
Thrust Dynamic Load (lbs.)	35,490
Moment Static Load (lbs. -in.)	N/A
Moment Dynamic Load (lbs. -in.)	N/A
Limiting Speed (RPM)	750
Speed (RPM) Axial	N/A
Material	52100 Bearing Steel

Download Adobe Acrobat Reader

SSB - Thin Section Bearings & Slim Section Bearings

Contact Us

Please contact us at 909-464-1551 for your unique application challenges. We look forward in working with you to help solve your next bearing project. You can also complete the following Application Data Sheet and email it back to us.

Made in USA

Slim Section Bearings, Inc. is the manufacturing division of Ritbearing Corp. With experience in manufacturing that began in 1987, we are able to give our customers the ability to obtain American-made thin section bearing products.

SSB Catalog - Slim Section Bearings Catalog

SSB Catalog

SSB: Slim Section Bearings catalog including standard production bearings and customized solutions

Download SSB Catalog
